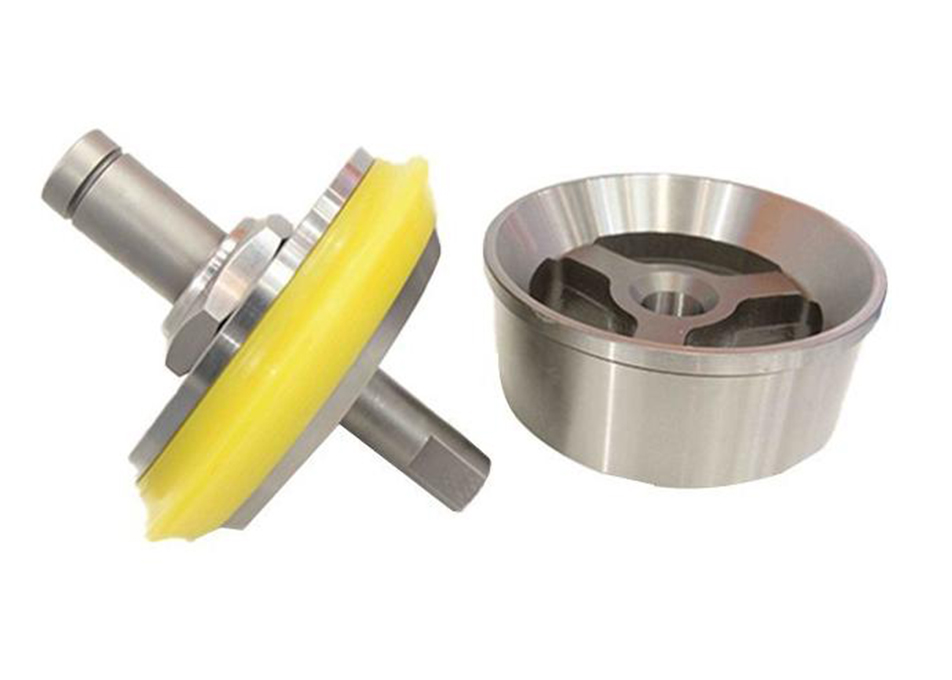

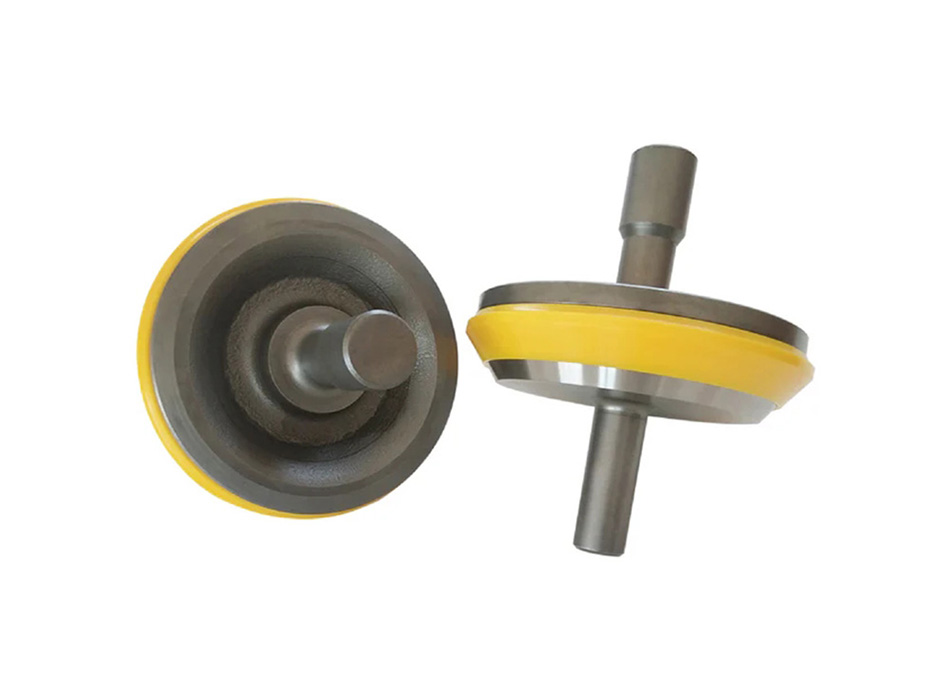

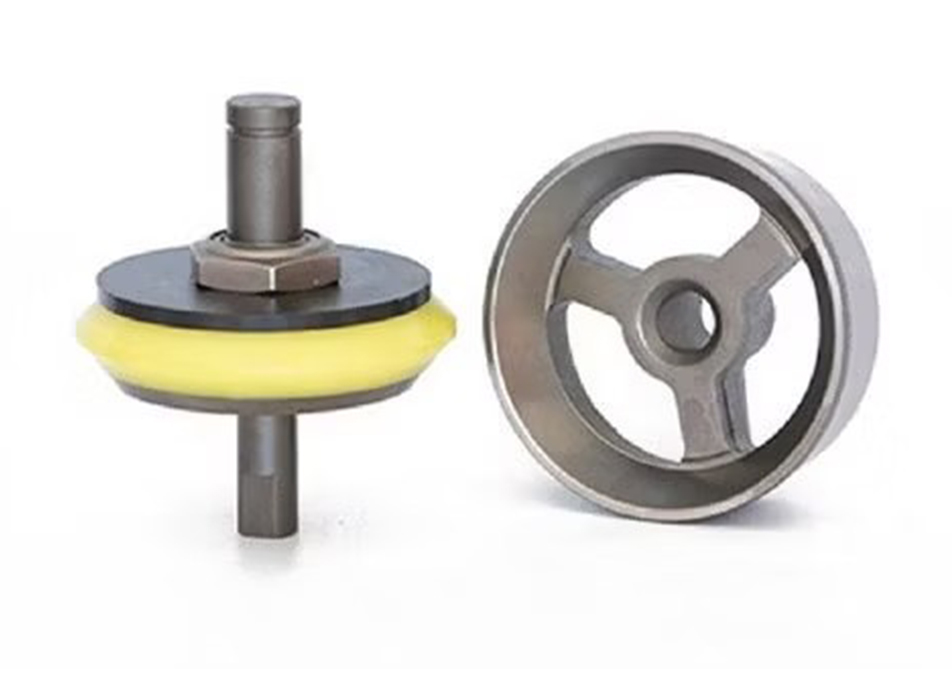

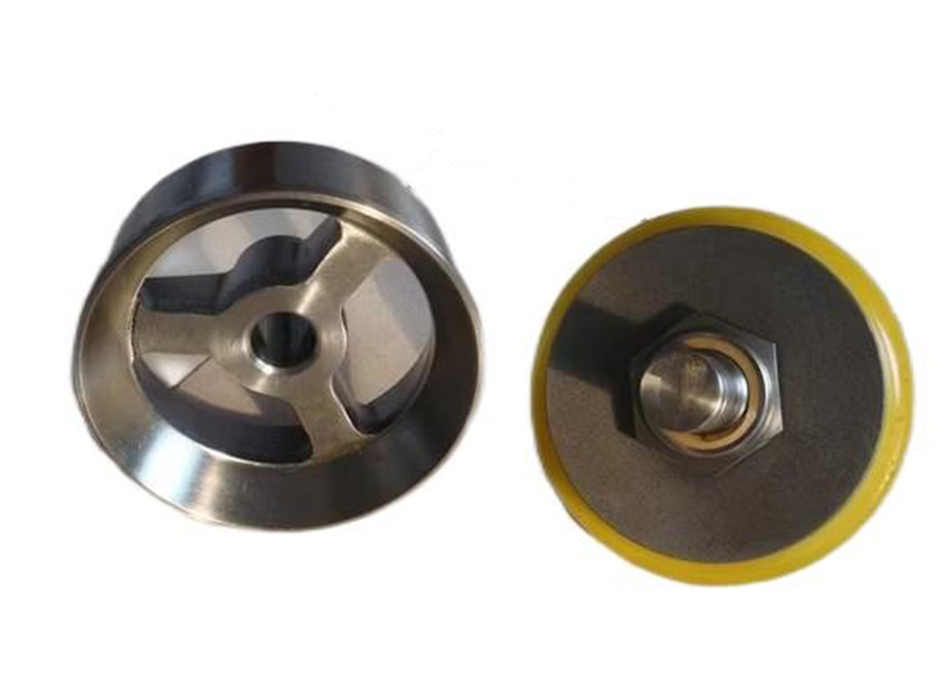

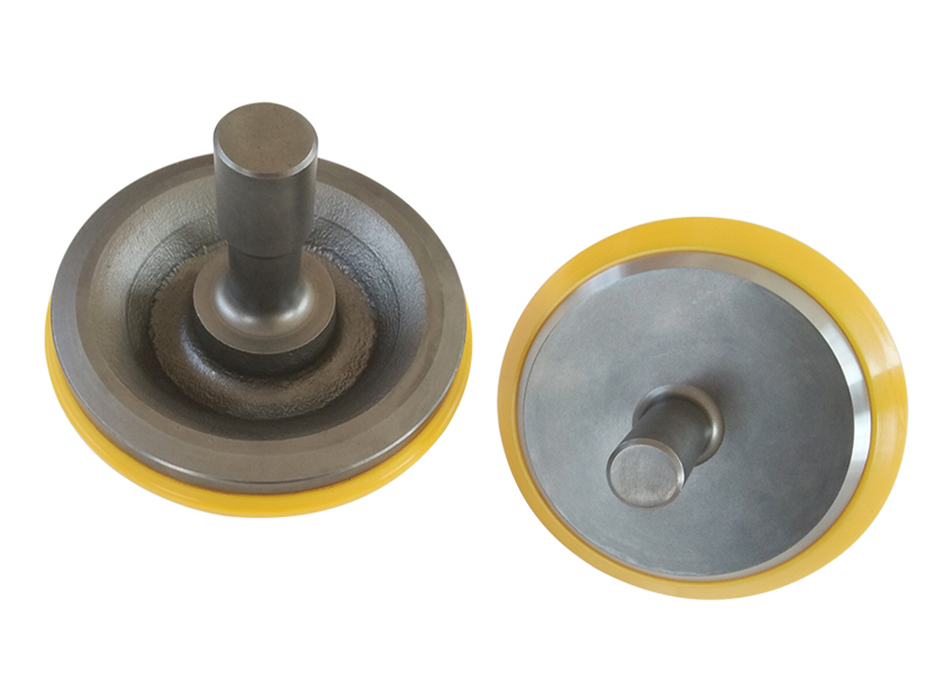

In mud pump applications, the importance of reliable valve assemblies cannot be overstated, and the 3-web valve assemblies emerge as a standout solution. Designed to withstand the rigorous demands of drilling operations, these valve assemblies, available in API 4 through to API 8 specifications, offer unparalleled durability and performance. Their three-web construction ensures enhanced stability and resistance to wear, crucial for maintaining optimal pump efficiency in harsh environments.
Moreover, their interchangeability with major industry brands including Gardner Denver, Emsco, Bomco, Ideco, Oilwell, and National, among others, underscores their versatility and compatibility, facilitating seamless integration into existing systems without compromising quality or reliability. Trusted by professionals in the drilling sector, these 3-web valve assemblies represent a dependable choice for achieving consistent pump performance and minimising downtime in critical operations.
● 100% interchangeable with the most common brands of mud pumps.
● Pressure Rate: Up to 7500 psi (seat)
● Best in low to medium pressures
● Temperature Rate: 160°F (Std Insert)
● Suitable muds: Water and synthetic- based
● API Size: 6-1/4" to 7-1/2"
● The forged, solid-body construction provides durability at high pressures.
● The large bearing area on the valve seat webs promotes a long service life.
● Various insert styles and materials are available to suit any drilling condition.
● Carbon-steel valve springs are standard.
● A long-life, stainless-steel upgrade is available.
● The valve is best suited for low- to medium-pressure.
● Drilling operations because of the two-piece assembly of the valve body.
We provide 3-Web Valves for the following brands:
| Mud Pump Brand | Mud Pump Model |
| Bentec | T-1600-AC |
| Drillmec | 9T800, 9T1000, 12T1600 |
| EMSCO | F-500, F-800,F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-1600, FC-2200 |
| Gardner Denver | TEE, PAH, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11, PXL-2000 |
| IDECO | T-500, T-800, T-1000, T-1300, T-1600 |
| LEWCO | W-446, WH-1612, W-2200, W-2214, W-2215 |
| Oilwell | A-560-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT |
| MH Wirth | TPK-800, TPK-1000, TPK-1300, TPK-1600, TPK-2000, TPK-2200 |
| National | JW165, JW-340, JW-400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220 |
| TSC | WF-700, WF-1000, WF-1300, WF-1600, WF-2000, WF-2200 |
| HONGHUA | HHF-500, HHF-800, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL |
| Bomco | F-500, F-800, F-1000, F-1300, F-1600, F-1600HL |
| Lanshi | 3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800 |
| Weatherford | MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-800, E-1100, E-1600, E-2200, EQ-2200 |
| Russian pumps | 8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310, 8T-650 |
Please feel free to contact us. We will get back to you ASAP.
