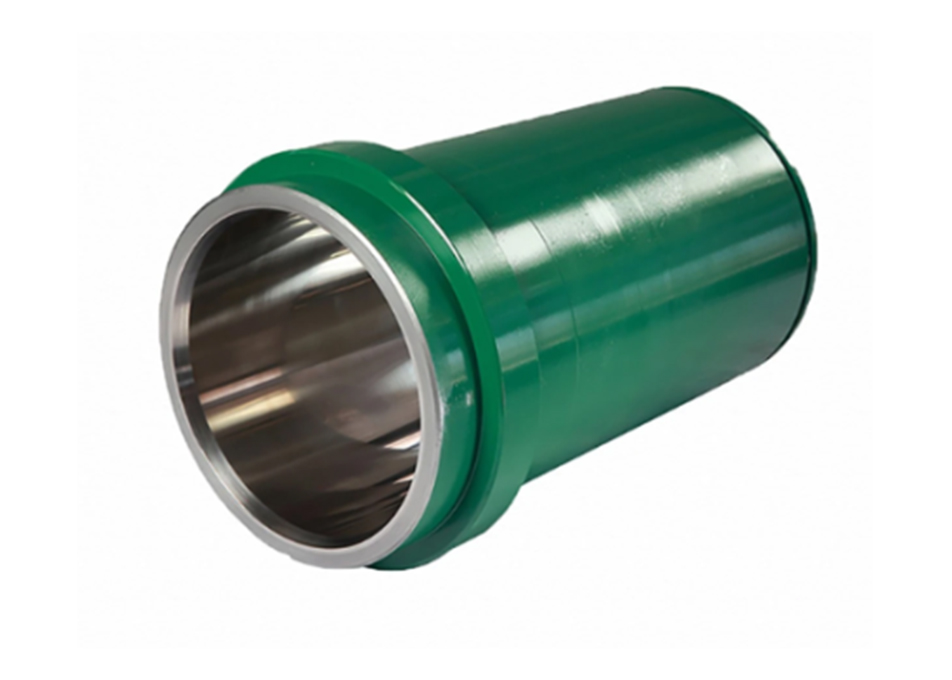

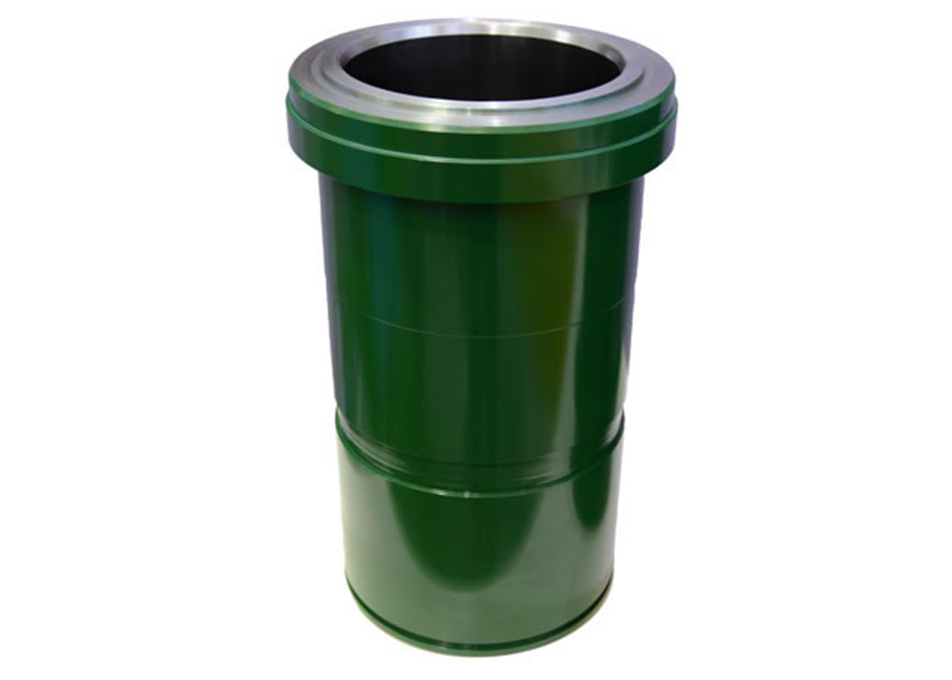

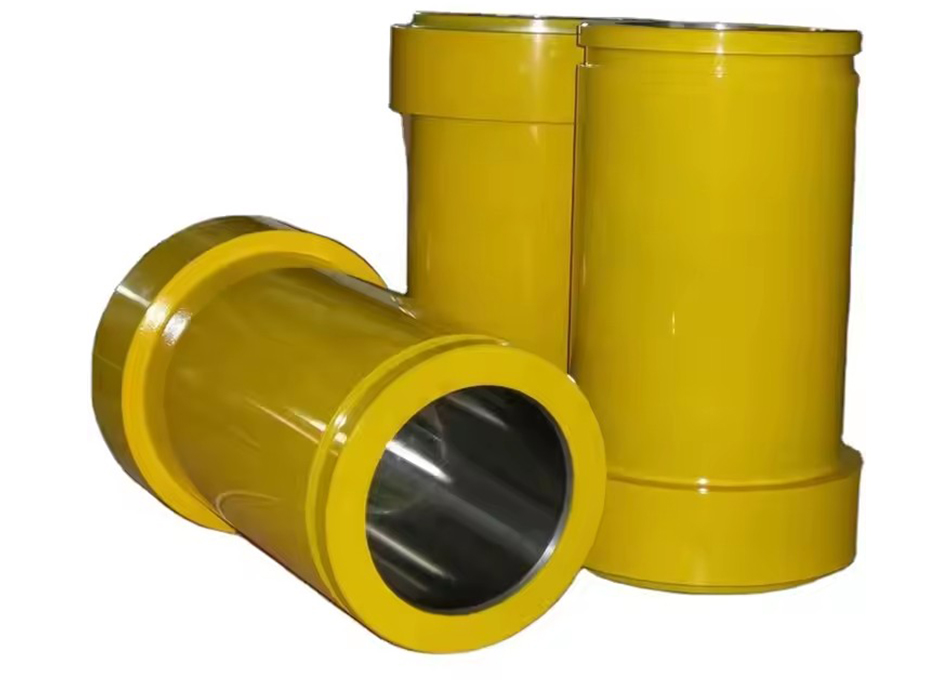

Bi-Metal Liner for Mud Pump

Bi-metal liners (double metal liners) are made of forged steel shell and wear-resistant sleeve of high chromium iron. In the production process, the size accuracy should be strictly controlled, which can ensure that they can be easily and stably installed. The inner sleeve with high finish and hardness is wear-resistant, corrosion-resistant and has a long service life. The bi-metal liners are suitable for a lot of bad working conditions. lts service life is more than 800 hours.

Design Features

● 100% interchangeable with the most common brands of mud pumps.

● Liner Size:Available in sizes from 4-1/2" to 7"

● Material:AISI 1045/ASTM A532M

● Hardness:HRC 60~69

● Normal Service Life(Hr):800

● Pressure (Max. in psi):7500

● Temperature:20~240℉

● pH (Normal):7.5~10.2

● Hydrogen Sulfide (Max. in ppm):22

● Drilling Fluid Condition:0.21% Oil Based and Oil Emulsion





Parameter

We provide Bi-Metal Liner for the following brands:

Mud Pump Brand Mud Pump Model
Bentec T-1600-AC
Drillmec 9T800, 9T1000, 12T1600
EMSCO F-500, F-800, F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-1600, FC-2200
Gardner Denver TEE, PAH, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11, PXL-2000
IDECO T-500, T-800, T-1000, T-1300, T-1600
LEWCO W-446, WH-1612, W-2200, W-2214, W-2215
Oilwell A-560-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
MH Wirth TPK-800, TPK-1000, TPK-1300, TPK-1600, TPK-2000, TPK-2200
National JW165, JW-340, JW-400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220
TSC WF-700, WF-1000, WF-1300, WF-1600, WF-2000, WF-2200
HONGHUA HHF-500, HHF-800, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL
Bomco F-500, F-800, F-1000, F-1300, F-1600, F-1600HL
Lanshi  3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800
Weatherford MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-800, E-1100, E-1600, E-2200, EQ-2200
Russian pumps 8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310, 8T-650
