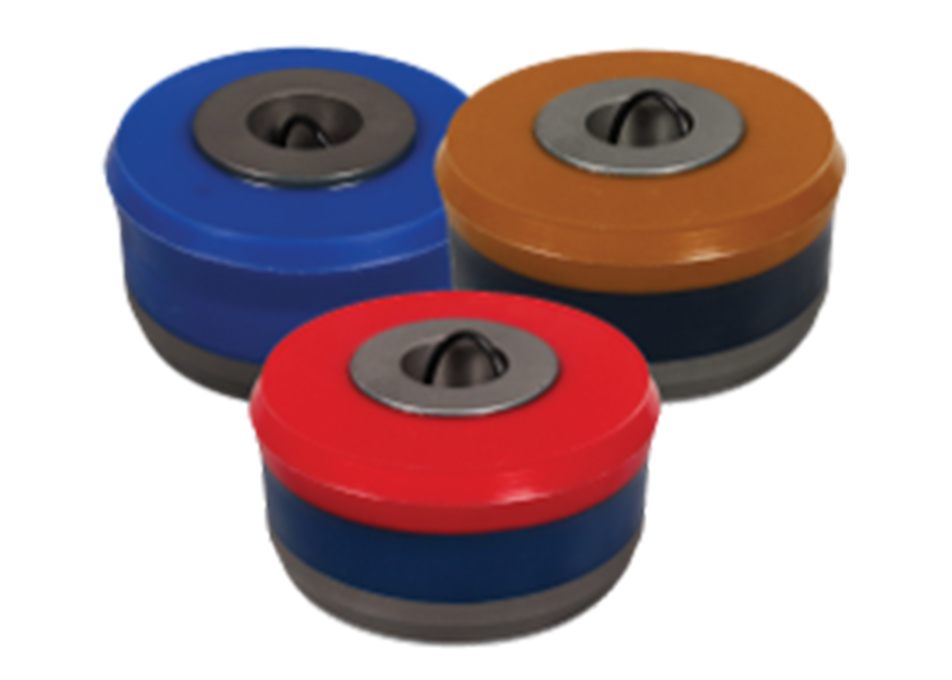

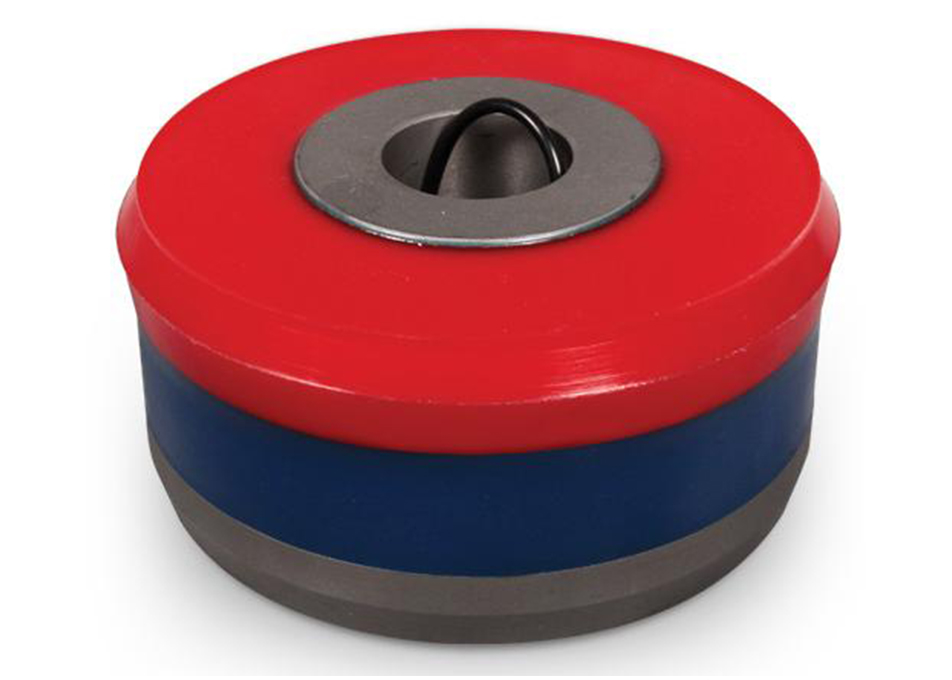

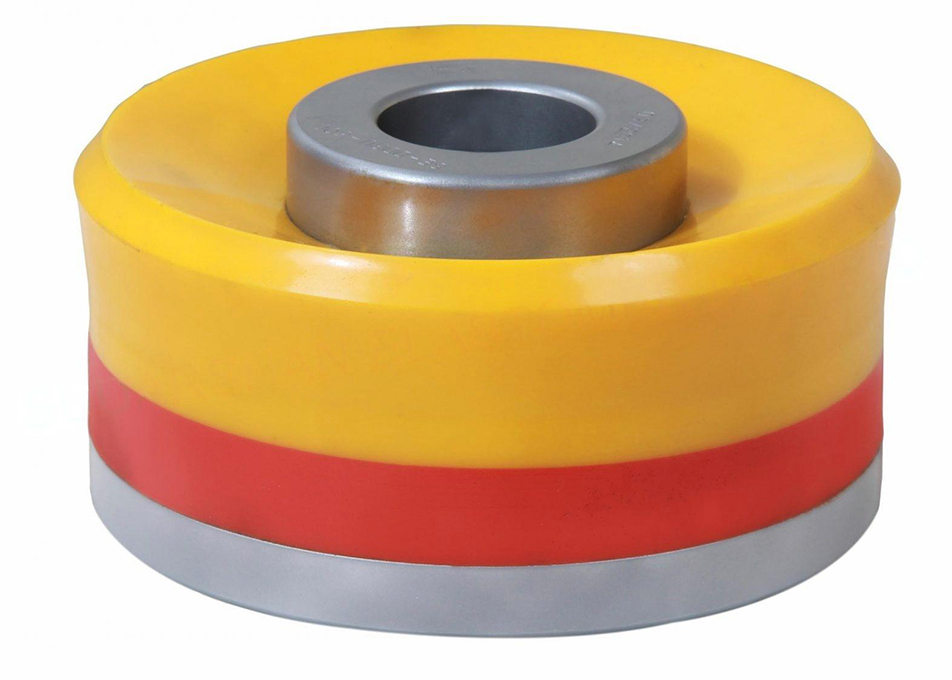

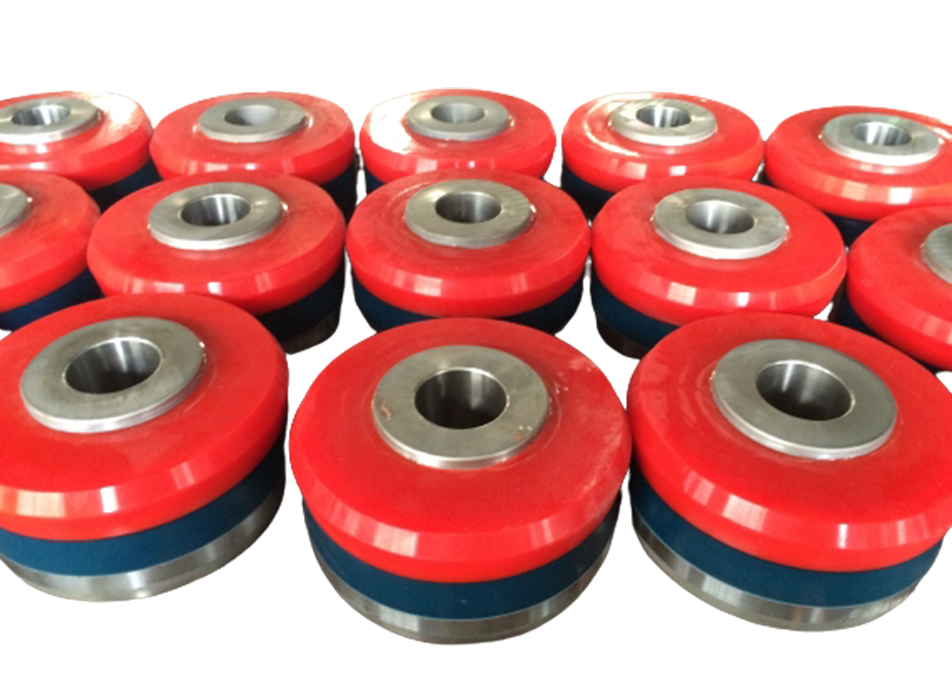

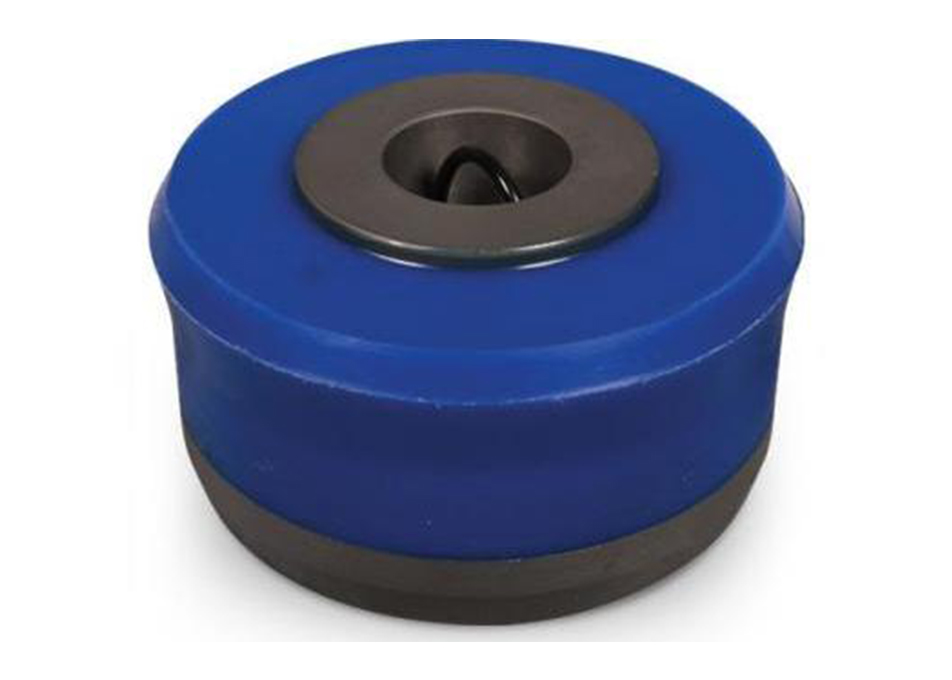

Our Bull Nose Extreme Piston is designed to preform in the harshest of drilling conditions, its oil-resistant high-temperature premium urethane homogenous compound has excellent abrasion resistance, low friction surface, and high tensile strengths. It is compatible with all applications and mud types and will withstand operating temperatures from -20ºF up to 350ºF with pressures up to 7500psi. Superior design and ultra-durable quality adds value through increased run times in extreme conditions, reduced maintenance, and reduced cost per pumping hour.
● 100% interchangeable with the most common brands of mud pumps.
● “Bull nose” lip design provides better sealing to reduce flush system contamination
● Available Piston Size: 3 ~ 7-1/2 in
● Wide Temperature Range: -20°F ~ 350°F, 7500 psi.
● Suitable muds: All based muds
● Enhanced piston running life with a proprietary blend of lubricating agents. Compatible with existing piston rods
● Fully compatible with all types of drilling and mud during any point of the drilling process.
We provide Bull Nose Extreme Pistons for the following brands:
| Mud Pump Brand | Mud Pump Model |
| Bentec | T-1600-AC |
| Drillmec | 9T800, 9T1000, 12T1600 |
| EMSCO | F-500, F-800,F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-1600, FC-2200 |
| Gardner Denver | TEE, PAH, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11, PXL-2000 |
| IDECO | T-500, T-800, T-1000, T-1300, T-1600 |
| LEWCO | W-446, WH-1612, W-2200, W-2214, W-2215 |
| Oilwell | A-560-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT |
| MH Wirth | TPK-800, TPK-1000, TPK-1300, TPK-1600, TPK-2000, TPK-2200 |
| National | JW165, JW-340, JW-400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220 |
| TSC | WF-700, WF-1000, WF-1300, WF-1600, WF-2000, WF-2200 |
| HONGHUA | HHF-500, HHF-800, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL |
| Bomco | F-500, F-800, F-1000, F-1300, F-1600, F-1600HL |
| Lanshi | 3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800 |
| Weatherford | MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-800, E-1100, E-1600, E-2200, EQ-2200 |
| Russian pumps | 8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310, 8T-650 |
Please feel free to contact us. We will get back to you ASAP.
