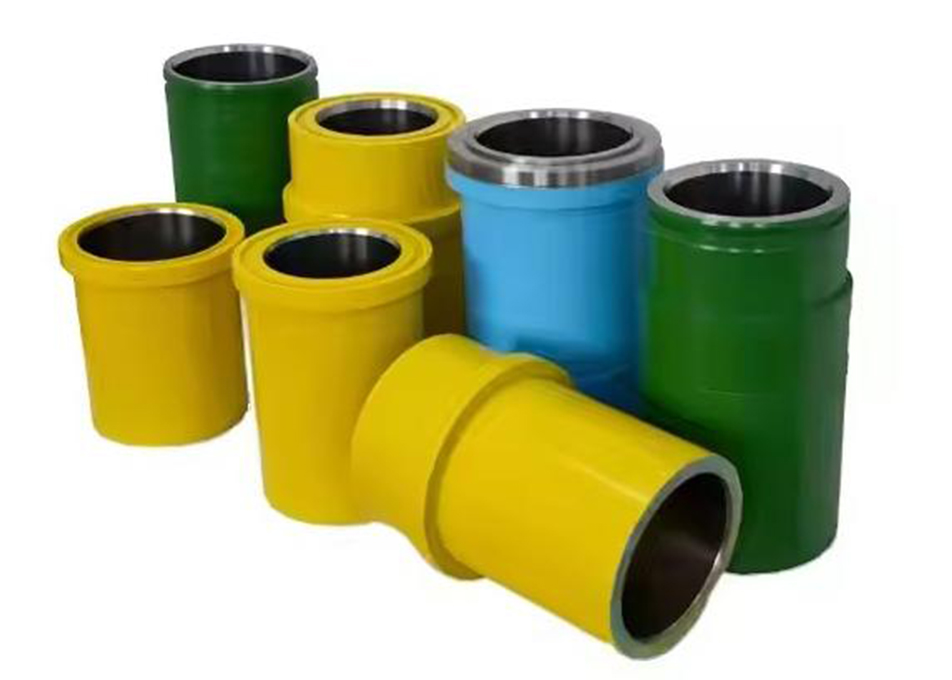

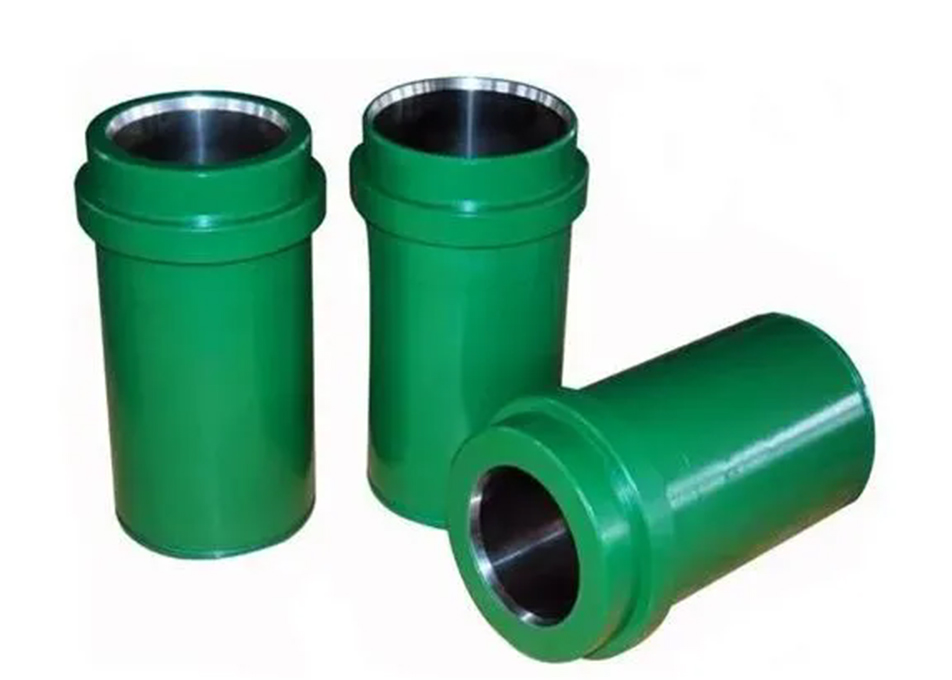

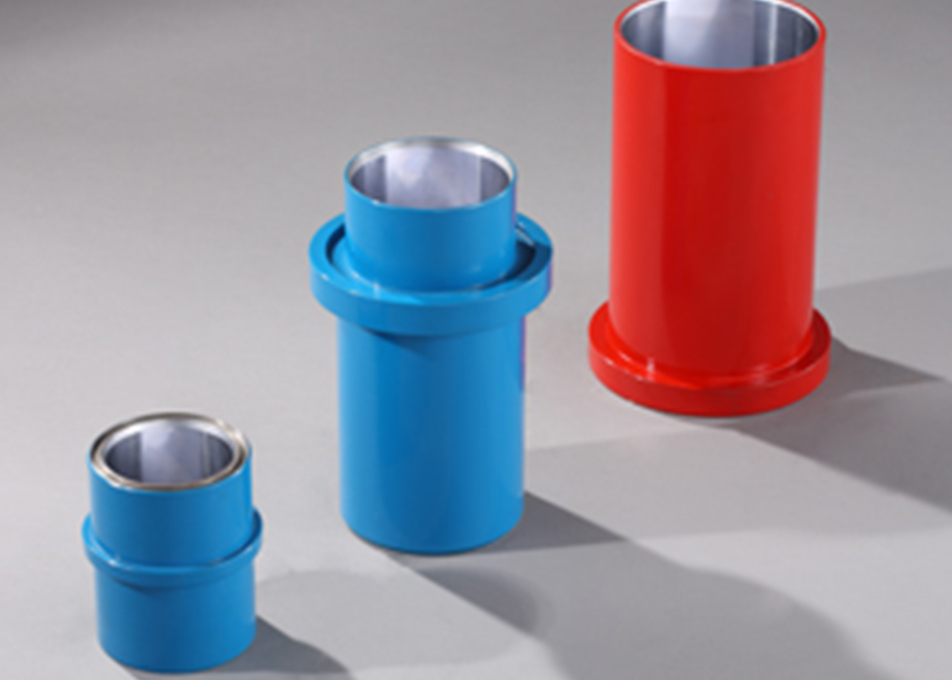

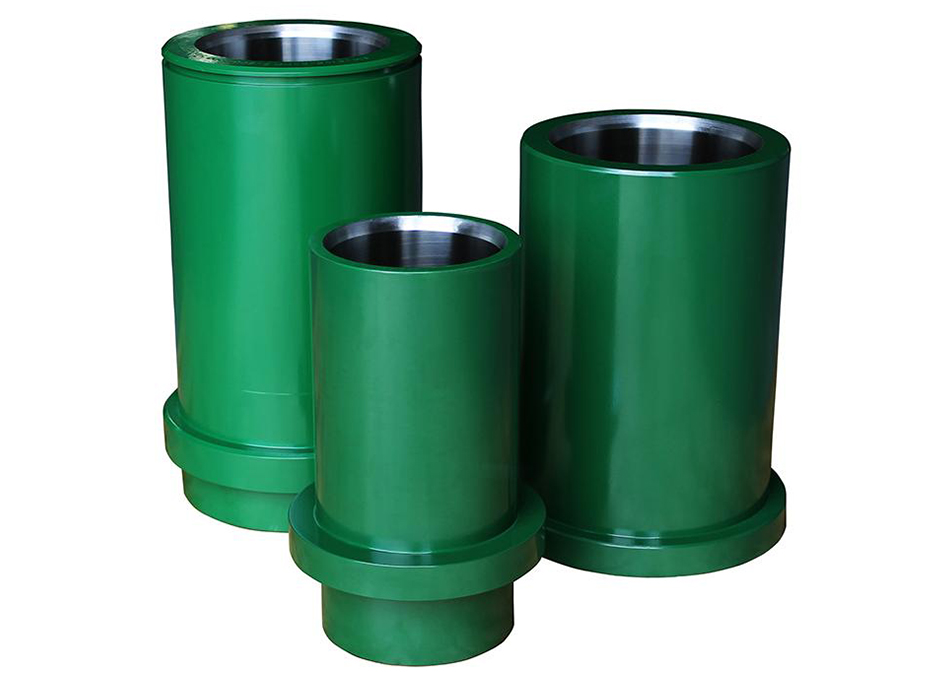

OFD chrome plated liners feature a chrome-plated outer liner, in lieu of a sleeve, for maximum thickness. These liners have an inner surface that is plated with a layer of chromium to increase their wear resistance. The liner is machined and polished to a mirror like finish.
Chrome-plated liners are commonly used in applications where abrasion resistance is essential.
● 100% interchangeable with the most common brands of mud pumps
● Liner Size：Available in sizes from 4-1/2" to 7"
● Material：AISI 1045 & Chrome-plated bore
● Hardness：HRC 58~62
● Normal Service Life(Hr)：800
● Pressure (Max. in psi)：7500
● Temperature：20~240℉
● pH (Normal)：7.5~10.2
● Hydrogen Sulfide (Max. in ppm)：22
● Drilling Fluid Condition：0.21% Oil Based and Oil Emulsion
We provide Chrome Plated Liners for the following brands:
| Mud Pump Brand | Mud Pump Model |
| Bentec | T-1600-AC |
| Drillmec | 9T800, 9T1000, 12T1600 |
| EMSCO | F-500, F-800,F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-1600, FC-2200 |
| Gardner Denver | TEE, PAH, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11, PXL-2000 |
| IDECO | T-500, T-800, T-1000, T-1300, T-1600 |
| LEWCO | W-446, WH-1612, W-2200, W-2214, W-2215 |
| Oilwell | A-560-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT |
| MH Wirth | TPK-800, TPK-1000, TPK-1300, TPK-1600, TPK-2000, TPK-2200 |
| National | JW165, JW-340, JW-400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220 |
| TSC | WF-700, WF-1000, WF-1300, WF-1600, WF-2000, WF-2200 |
| HONGHUA | HHF-500, HHF-800, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL |
| Bomco | F-500, F-800, F-1000, F-1300, F-1600, F-1600HL |
| Lanshi | 3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800 |
| Weatherford | MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-800, E-1100, E-1600, E-2200, EQ-2200 |
| Russian pumps | 8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310, 8T-650 |
Please feel free to contact us. We will get back to you ASAP.
