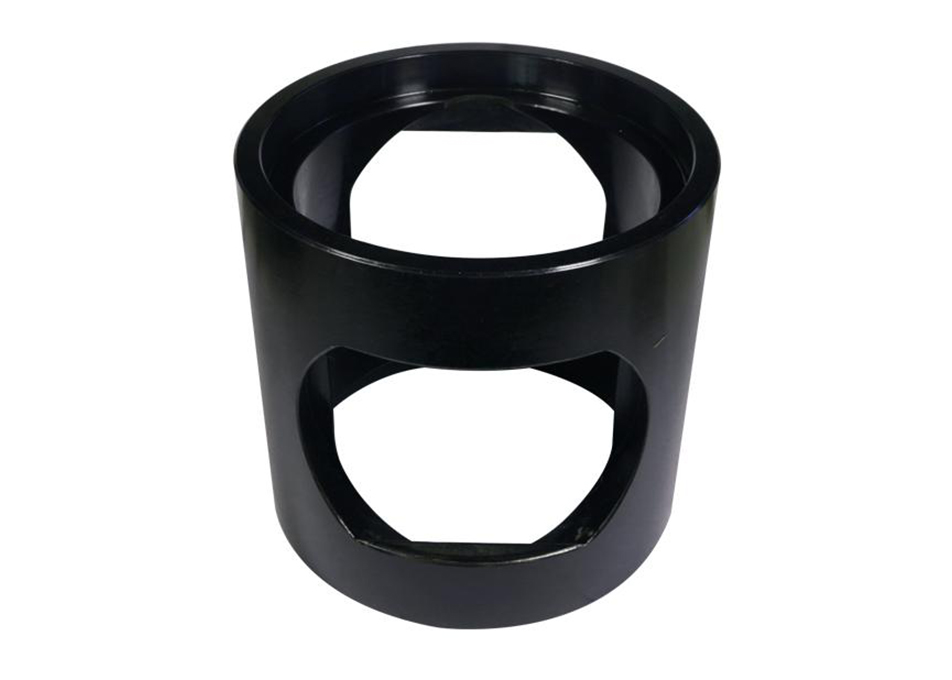

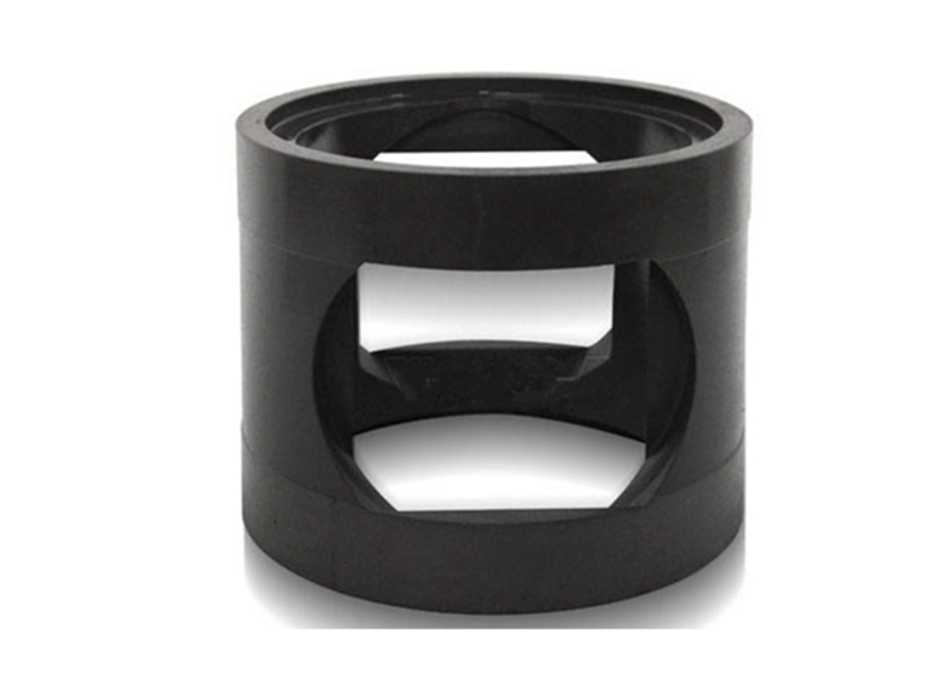

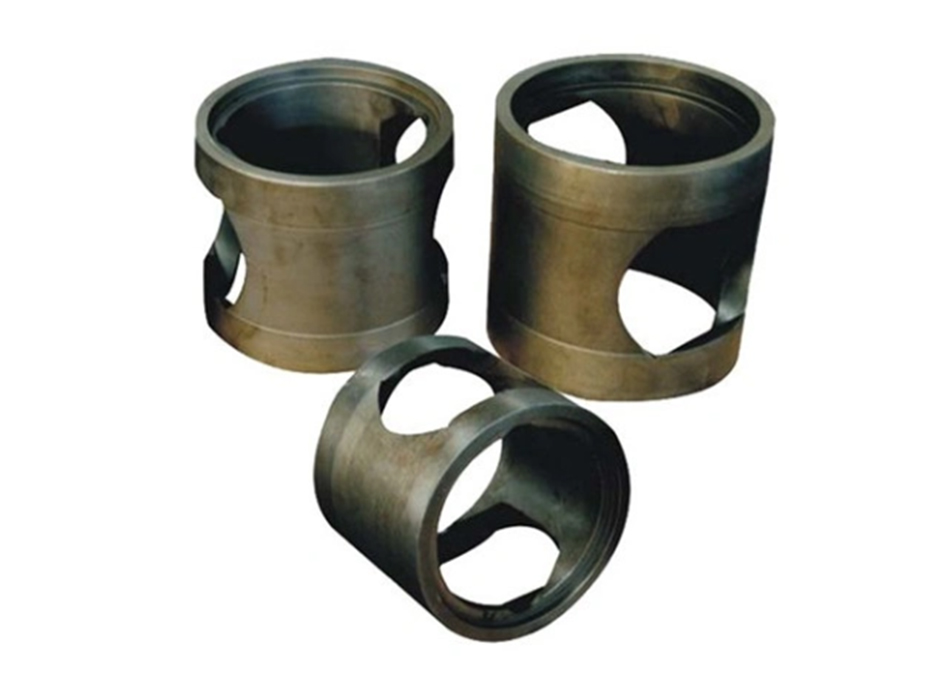

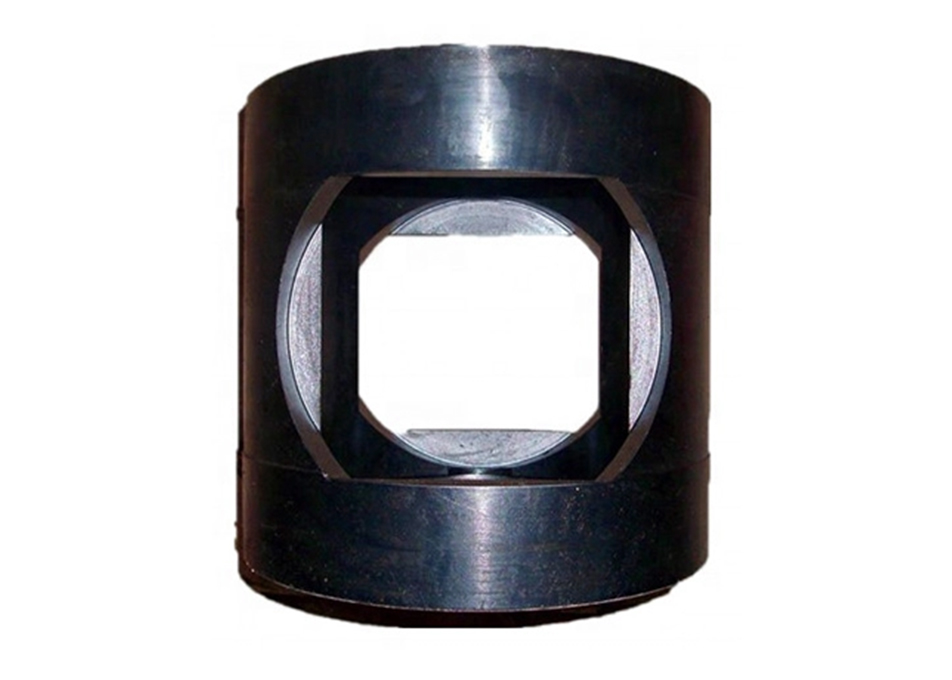

Cylinder Liner Cage for Mud Pump

Cylinder Liner Cage is an important part of the mud pump system, especially in the application of the hydraulic end plays a key role. It is mainly used to support and regulate the piston system of the mud pump to ensure the normal operation and stability of the pump.

The main function of the Cylinder Liner Cage is to support the piston of the pump by applying vertical thrust, maintaining its precise position required during the operation. This not only reduces mechanical wear, but also improves the efficiency and service life of the mud pump. The design typically includes a robust cylinder block, wear-resistant pistons and high-performance seals that can withstand the impact of high-pressure mud and ensure long-term stable operation.

Design Features

● Cylinder Liner Cage is made of high-strength alloy material with excellent corrosion resistance and pressure resistance to meet the challenges of mud pumps in harsh working environments.

● Cylinder Liner Cage is an important part of the mud pump, and its precise design and excellent performance provide strong support for the mud pump system.

● By improving the operational efficiency and stability of mud pumps, the Cylinder Liner Cage plays an irreplaceable role in oil and gas extraction, mining and other industries that require high-pressure mud transport.

Parameter

We provide Mud Pump Cylinder Liner Cages for the following brands:

Mud Pump Brand Mud Pump Model
Bentec T-1600-AC
Drillmec 9T800, 9T1000, 12T1600
EMSCO F-500, F-800,F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-1600, FC-2200
Gardner Denver TEE, PAH, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11, PXL-2000
IDECO T-500, T-800, T-1000, T-1300, T-1600
LEWCO W-446, WH-1612, W-2200, W-2214, W-2215
Oilwell A-560-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
MH Wirth TPK-800, TPK-1000, TPK-1300, TPK-1600, TPK-2000, TPK-2200
National JW165, JW-340, JW-400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220
TSC WF-700, WF-1000, WF-1300, WF-1600, WF-2000, WF-2200
HONGHUA HHF-500, HHF-800, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL
Bomco F-500, F-800, F-1000, F-1300, F-1600, F-1600HL
Lanshi  3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800
Weatherford MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-800, E-1100, E-1600, E-2200, EQ-2200
Russian pumps 8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310, 8T-650
