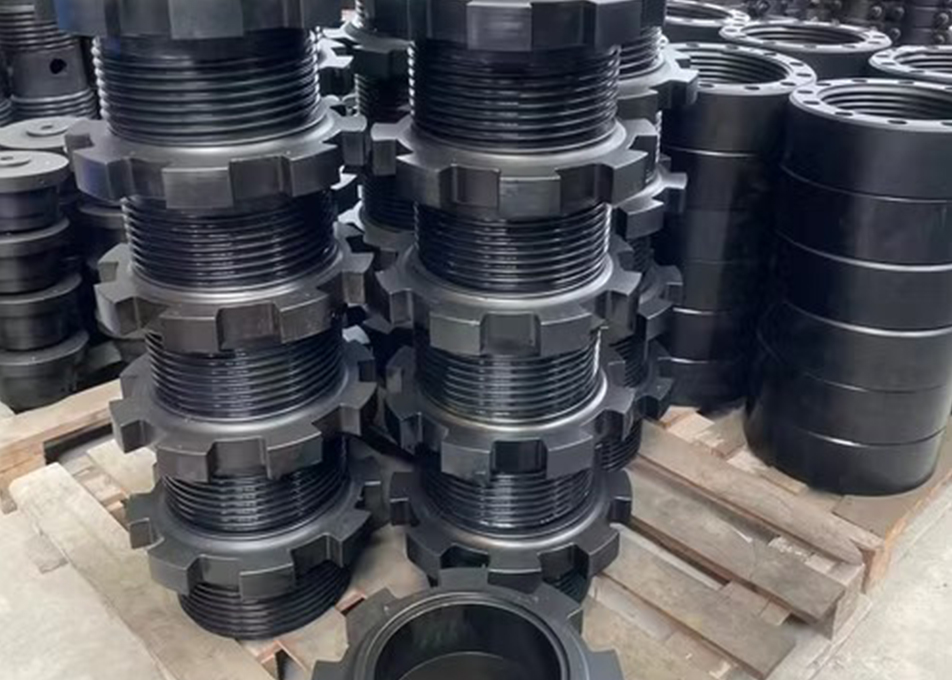

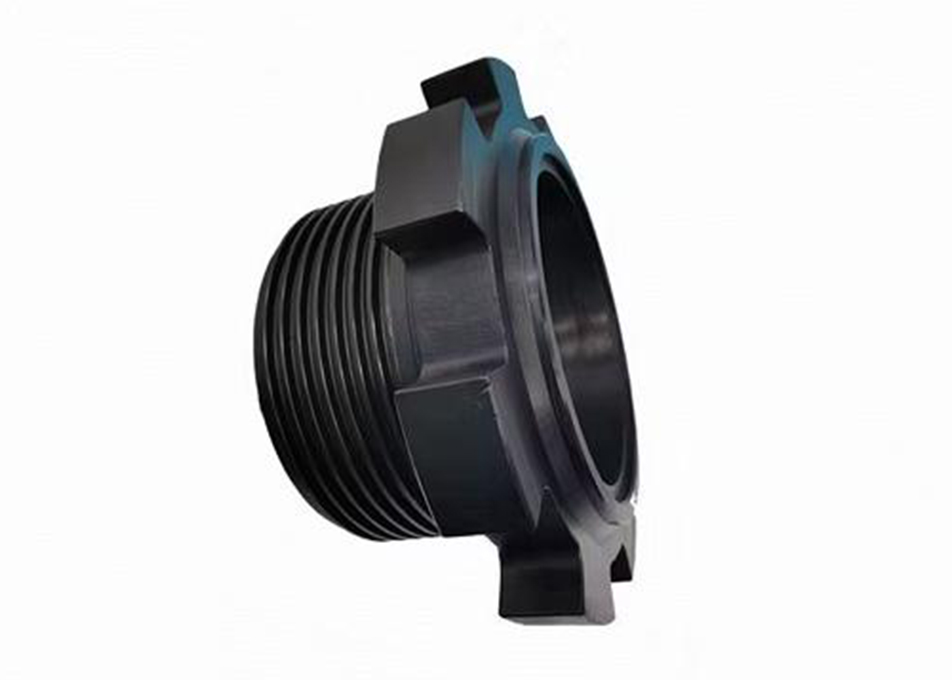

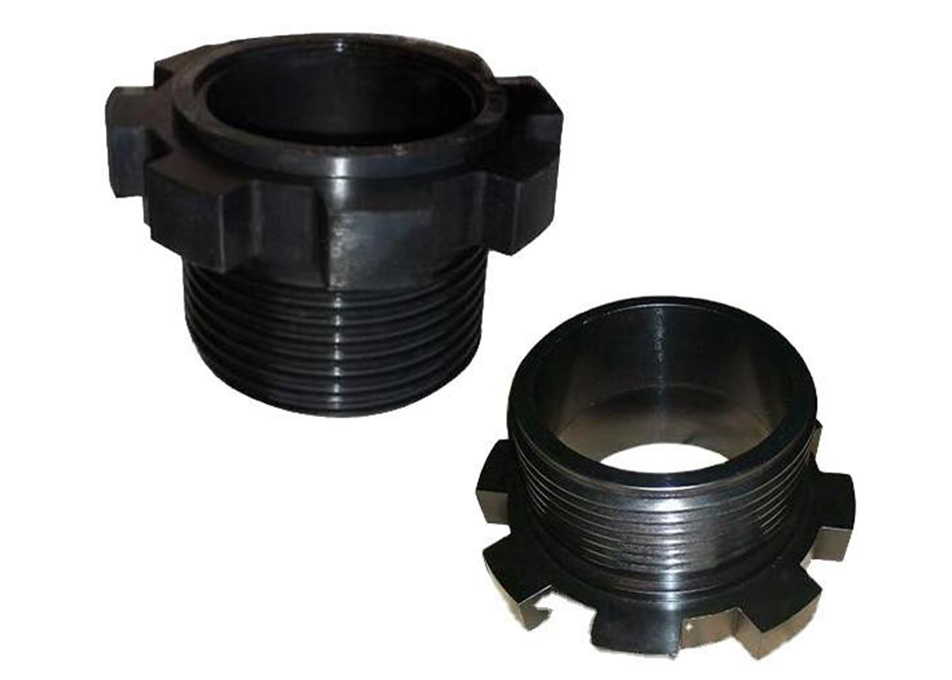

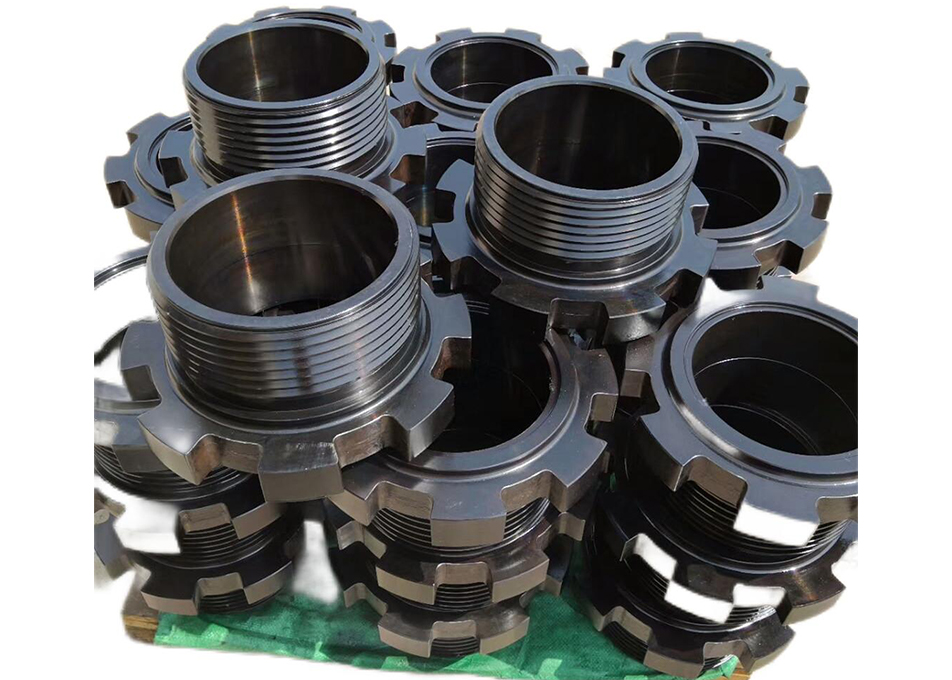

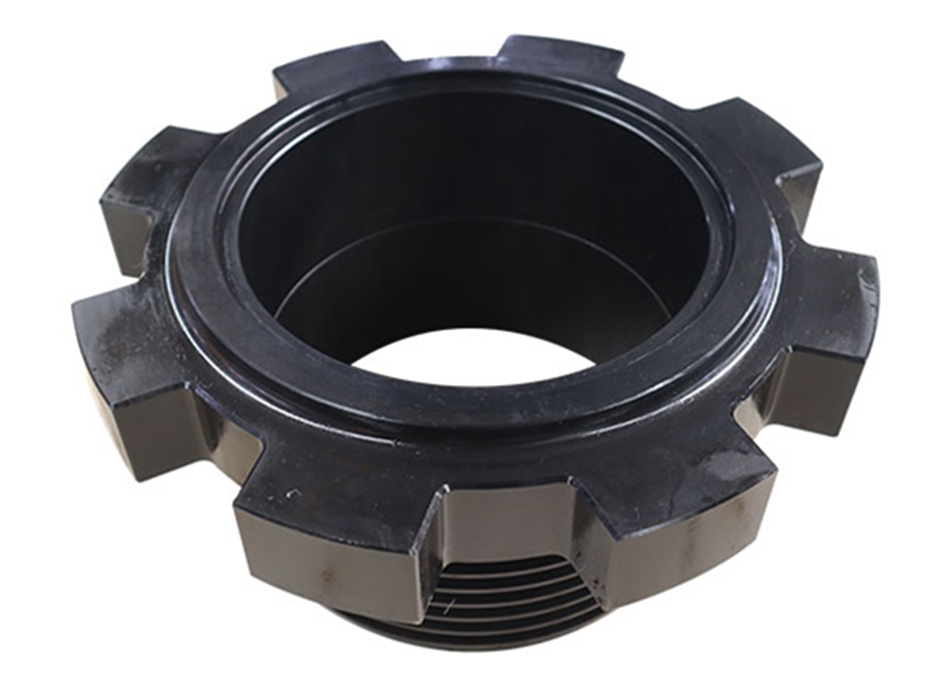

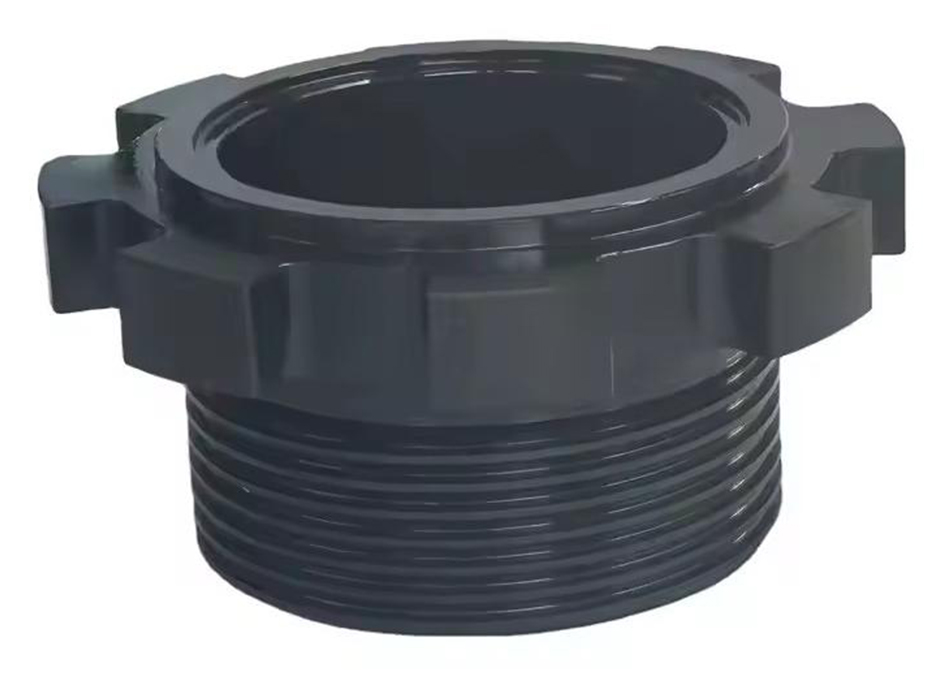

Cylinder Liner Gland is an important component used to hold the cylinder liner in mechanical systems, especially in internal combustion engines, compressors, pumps, and other mechanical equipment that requires air tightness or liquid tightness. Its main function is to provide a solid closed structure around the cylinder liner, ensure that the working medium inside the cylinder will not leak, and protect the cylinder liner from the external environment.
● Cylinder Liner Glands are usually made of high-strength metal materials, such as cast iron or alloy steel, which have excellent mechanical properties and can withstand high pressure and high temperature environments.
● In order to improve the sealing performance, the contact surface between the gland and the cylinder liner is usually designed to be very smooth, and rubber rings or metal gaskets are sometimes used to enhance the sealing effect.
● As a key component to ensure the sealing and stability of the Cylinder, the design, installation and maintenance of the Cylinder Liner Gland must be strictly checked. Only in this way can we ensure that the mechanical equipment can operate reliably under various working conditions, extend the service life of the equipment, and reduce maintenance costs.
We provide Mud Pump Cylinder Liner Glands for the following brands:
| Mud Pump Brand | Mud Pump Model |
| Bentec | T-1600-AC |
| Drillmec | 9T800, 9T1000, 12T1600 |
| EMSCO | F-500, F-800,F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-1600, FC-2200 |
| Gardner Denver | TEE, PAH, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11, PXL-2000 |
| IDECO | T-500, T-800, T-1000, T-1300, T-1600 |
| LEWCO | W-446, WH-1612, W-2200, W-2214, W-2215 |
| Oilwell | A-560-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT |
| MH Wirth | TPK-800, TPK-1000, TPK-1300, TPK-1600, TPK-2000, TPK-2200 |
| National | JW165, JW-340, JW-400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220 |
| TSC | WF-700, WF-1000, WF-1300, WF-1600, WF-2000, WF-2200 |
| HONGHUA | HHF-500, HHF-800, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL |
| Bomco | F-500, F-800, F-1000, F-1300, F-1600, F-1600HL |
| Lanshi | 3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800 |
| Weatherford | MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-800, E-1100, E-1600, E-2200, EQ-2200 |
| Russian pumps | 8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310, 8T-650 |
Please feel free to contact us. We will get back to you ASAP.
