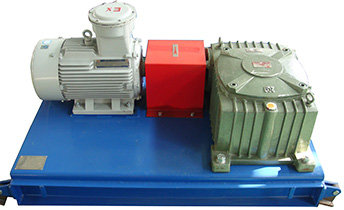

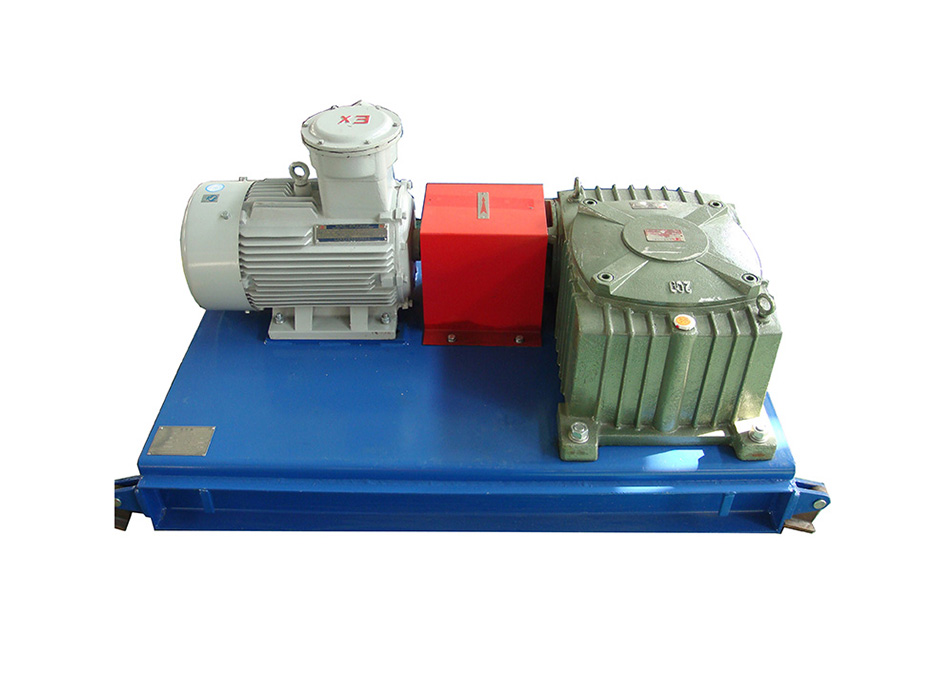

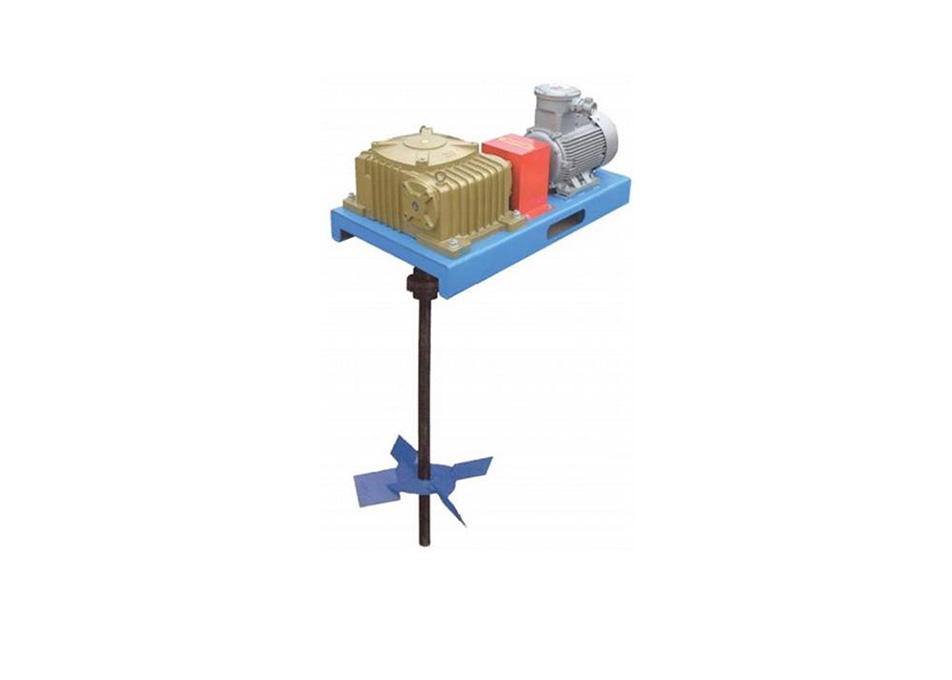

The agitator is an important part of the drilling fluid solids control system. It is mounted on the circulating tank. The vanes of the agitator dip into the mud to agitate the mud uniformly. Our design features in the rigid shaft offered in variable lengths to fit your pit dimensions.
The agitator is an important part of the drilling fluid solids control system. It is mounted on the circulating tank. The vanes of the agitator dip into the mud to agitate the mud uniformly. Our design features in the rigid shaft offered in variable lengths to fit your pit dimensions.
| Model | HA-5.5 | HA-7.5 | HA-11 | HA-15 |
| Power(kW) | 5.5 | 7.5 | 11 | 15 |
| Motor speed(rpm | 1450 | 1450 | 1450 | 1450 |
| Impeller speed(rpm) | 58 | 58 | 58 | 58 |
| Impeller diameter(mm) | 600 | 800 | 900 | 1000 |
| Weight(kg) | 530 | 600 | 650 | 830 |
| Dimensions(mm) | 1055×740x606 | 1340×800×648 | 1480×850×715 | 1530×815×715 |
| Model | HA-2.2 | HA-4 | HA-18.5 | |
| Power(kW) | 2.2 | 4 | 18.5 | |
| Motor speed(rpm) | 1440 | 1440 | 1440 | |
| Impeller speed(rpm) | 58 | 58 | 58 | |
| Impeller diameter(mm) | 400 | 500 | 1200 | |
| Weight(kg) | 190 | 350 | 880 | |
| Dimensions(mm) | 860×640×548 | 1015×740×628 | 1687×990×750 |
