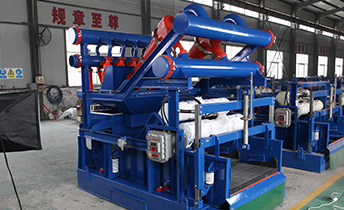

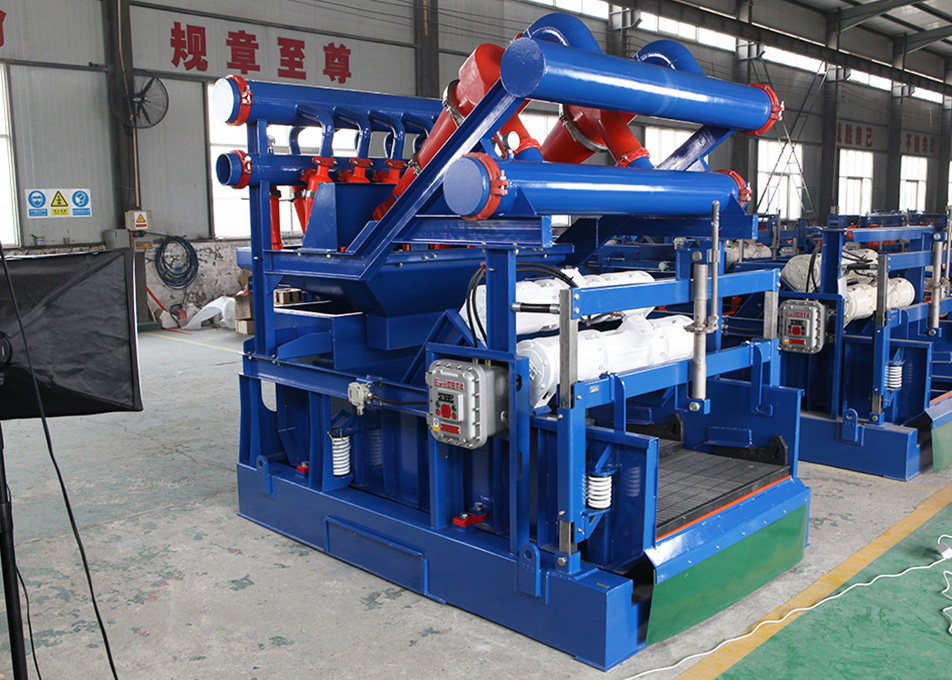

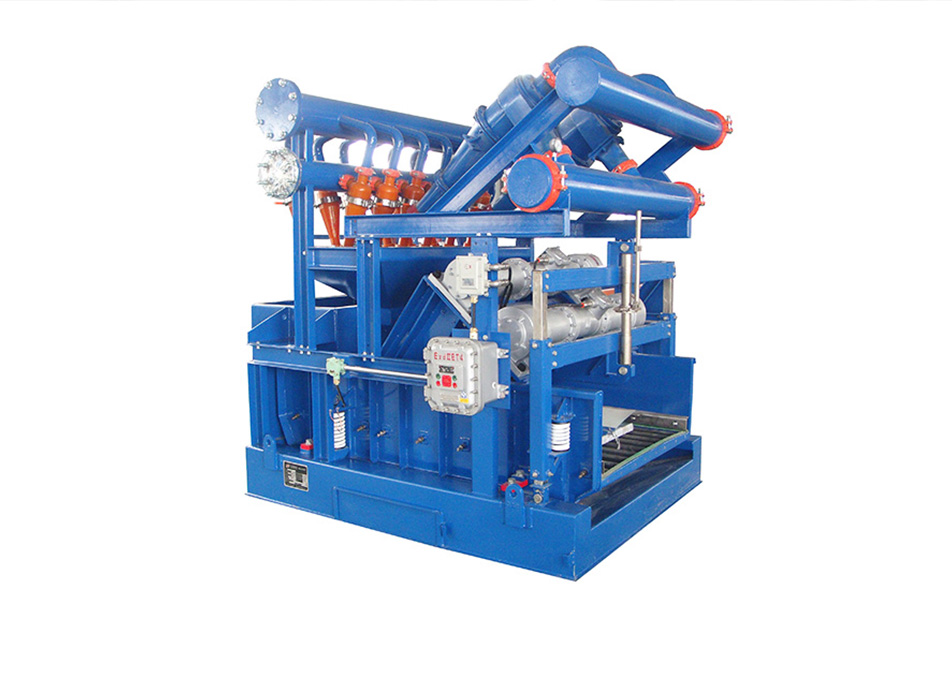

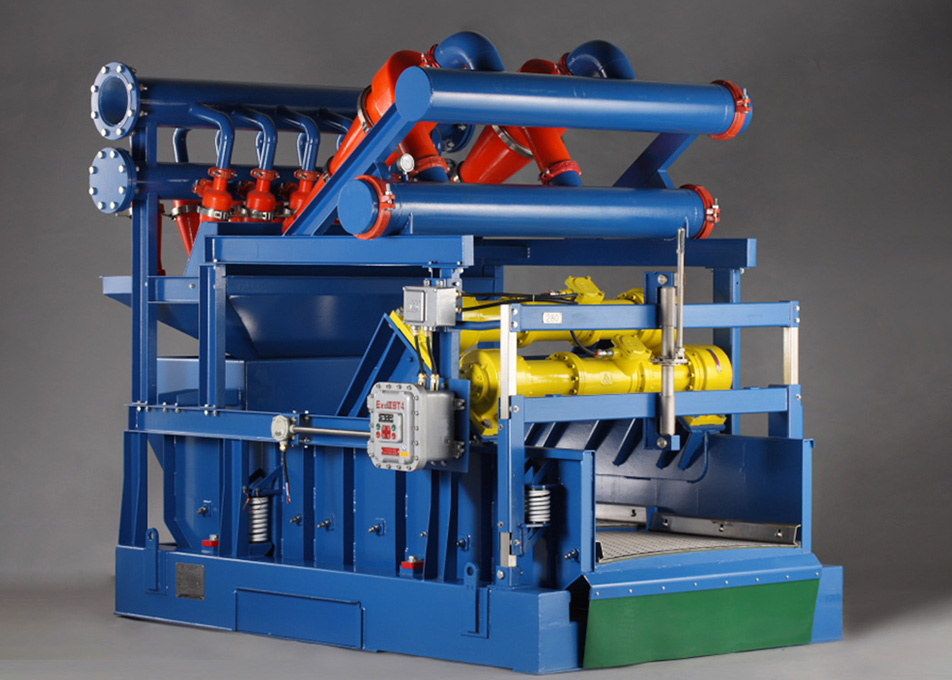

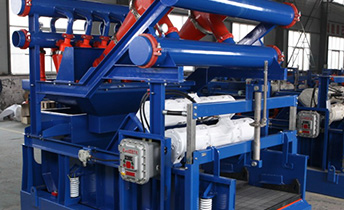

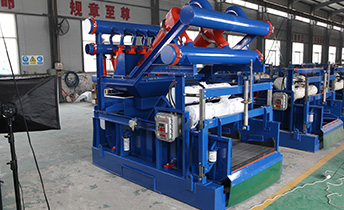

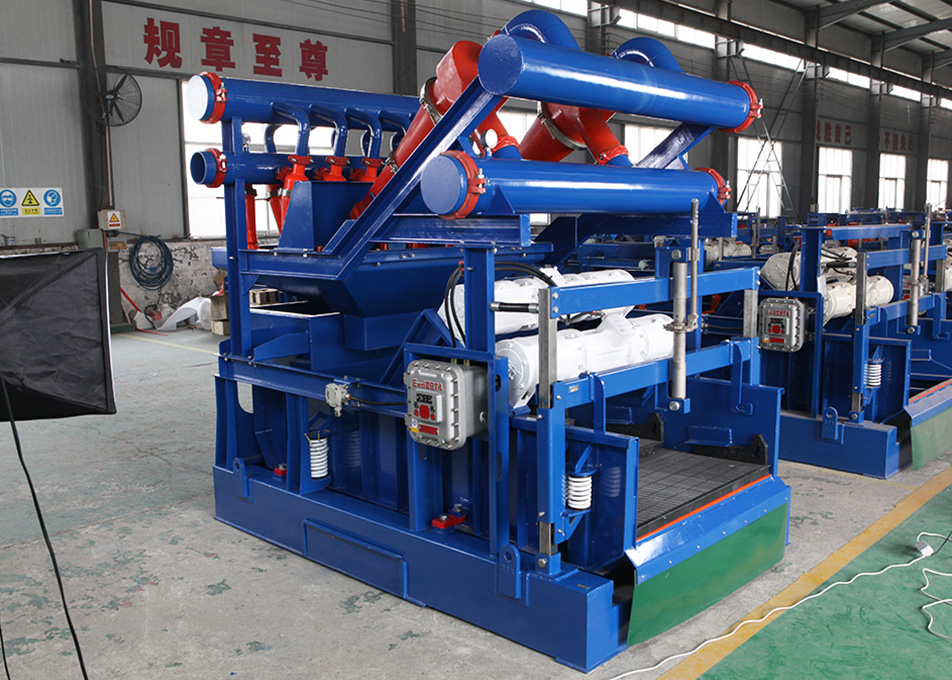

The HMC series mud cleaner is an efficient solids control equipment, which consists of a HS linear shale shaker, a hydraulic cone desander and a hydraulic cone desilter. The super G vibration intensity shale shaker and the numerous hydraulic cones of the desander and desilter enable the mud cleaner have a great treatment capacity. It can be used to eliminate solid particles sized 20~74μm in the drilling fluid. According to the drilling practices, you can use it as either a desander, a desilter,or a powerful shale shaker.
The HMC series mud cleaner is an efficient solids control equipment, which consists of a HS linear shale shaker, a hydraulic cone desander and a hydraulic cone desilter. The super G vibration intensity shale shaker and the numerous hydraulic cones of the desander and desilter enable the mud cleaner have a great treatment capacity. It can be used to eliminate solid particles sized 20~74μm in the drilling fluid. According to the drilling practices, you can use it as either a desander, a desilter,or a powerful shale shaker.
| Model | HMC250×2/100×12 | HMC250×3/100×16 | ||
| Parameters | Desander | Desilter | Desander | Desilter |
| Hydraulic cone | 10”×2 | 4”×12 | 10”×3 | 4”×16 |
| Pressure(MPa) | 0.2～0.4 | 0.2～0.4 | 0.2～0.4 | 0.2～0.4 |
| Capacity(m³/h) | 200 | 200 | 260 | 260 |
| Separation point(μm) | 43～74 | 20～44 | 43～74 | 20～44 |
| Inlet | 6” | 6” | 6" | 6” |
| Outlet | 8" | 8” | 8” | 8” |
| Shale shaker model | HS220-3P、HS240-3P、HS280-3P | HS220-3P、HS240-3P、HS280-3P | ||
| Motor power(kW) | 2×2.2 | 2×2.2 | ||
| Angle | -2°~+8 | -2°~+8° | ||
| adjustment range | ||||
| Weight(kg) | 2700、2740、2840 | 2900、3000、3160 | ||
| Dimensions(mm) | 2620×2450×2500/3150×2550×2500 | 2620×2630×2500/3150×2630×2500 | ||
