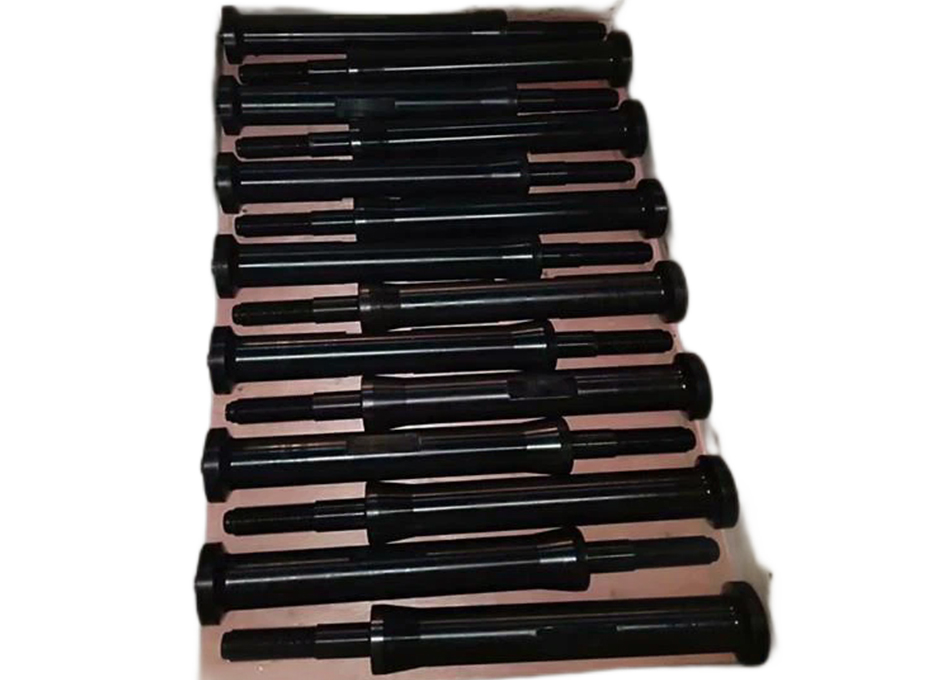

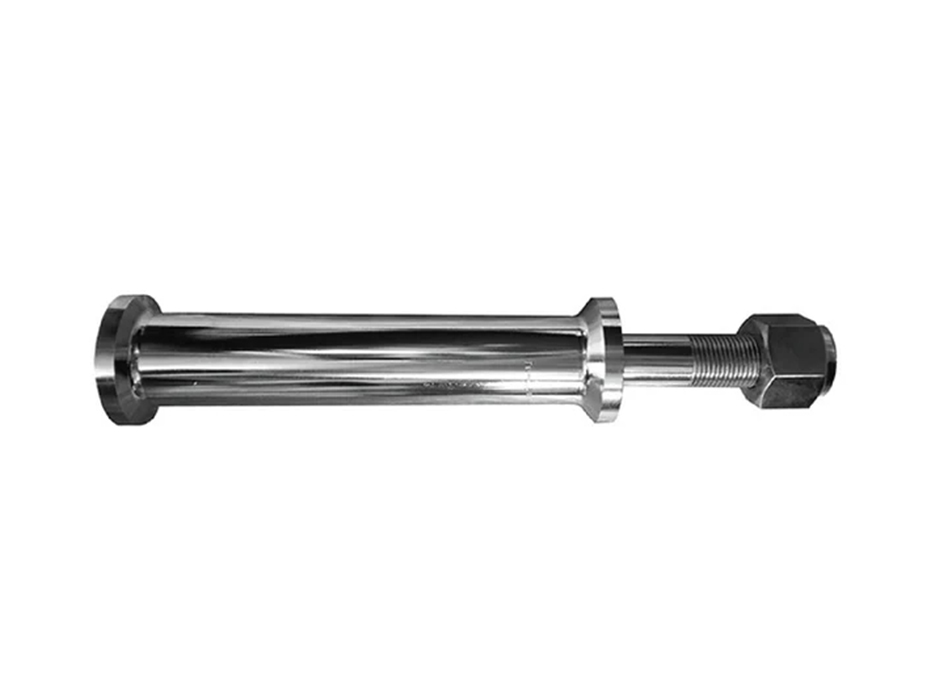

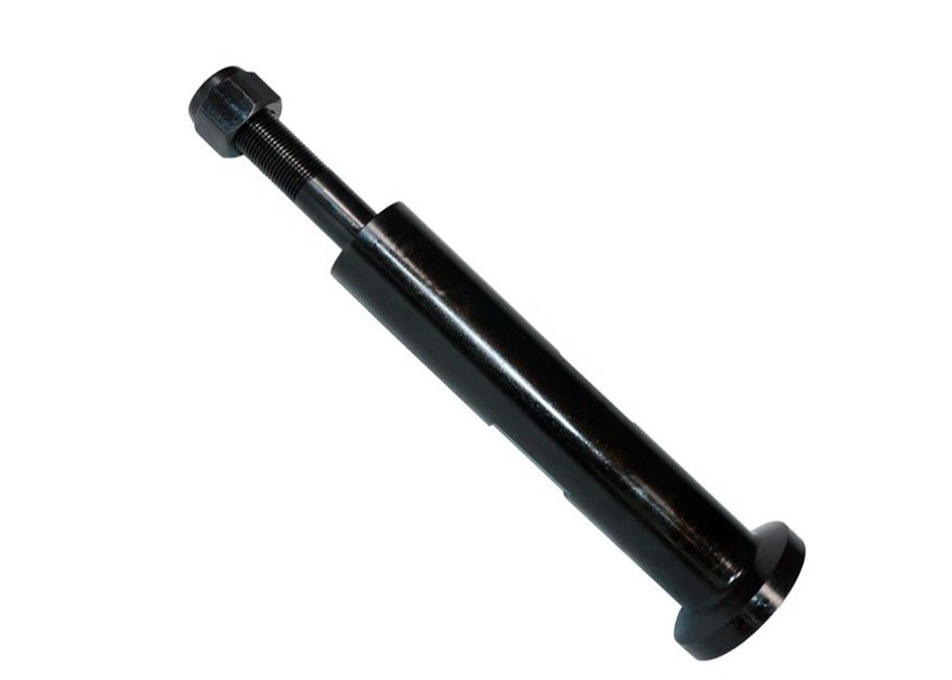

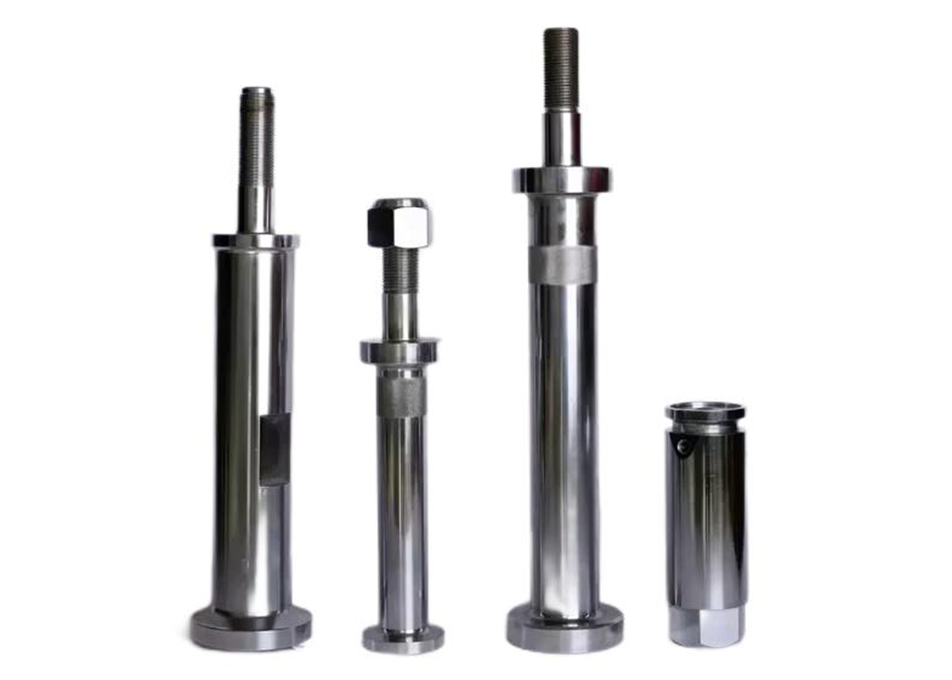

Our piston rods are made with premium-grade, heattreated alloy steel. The rods are treated to offer excellent resistance to fatigure, abrasion, corrosion and heavy loads. Our piston rods are fabricated using numerically controlled machining and polished to mirror-like finishes to ensure a perfect seal for protection of the mud pump gear end. The rod clamps are machined to ensure perfect fit and tight grip of piston rods and extension rods.
● 100% interchangeable with the most common brands of mud pumps
● Materials : 35CrMo or 42CrMo
● After heat treatment, Strong wear resistance
● Size 1#: Piston rod metric system - 42mm
● Size 2#: Piston rod inch system - 38.1mm
● Size 3#: Piston rod 500 metric system - 25.4mm
● Excellent resistance to fatigure, abrasion, corrosion and heavy loads
We provide Mud Pump Piston Rods for the following brands:
| Mud Pump Brand | Mud Pump Model |
| Bentec | T-1600-AC |
| Drillmec | 9T800, 9T1000, 12T1600 |
| EMSCO | F-500, F-800,F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-1600, FC-2200 |
| Gardner Denver | TEE, PAH, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11, PXL-2000 |
| IDECO | T-500, T-800, T-1000, T-1300, T-1600 |
| LEWCO | W-446, WH-1612, W-2200, W-2214, W-2215 |
| Oilwell | A-560-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT |
| MH Wirth | TPK-800, TPK-1000, TPK-1300, TPK-1600, TPK-2000, TPK-2200 |
| National | JW165, JW-340, JW-400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220 |
| TSC | WF-700, WF-1000, WF-1300, WF-1600, WF-2000, WF-2200 |
| HONGHUA | HHF-500, HHF-800, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL |
| Bomco | F-500, F-800, F-1000, F-1300, F-1600, F-1600HL |
| Lanshi | 3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800 |
| Weatherford | MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-800, E-1100, E-1600, E-2200, EQ-2200 |
| Russian pumps | 8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310, 8T-650 |
Please feel free to contact us. We will get back to you ASAP.
