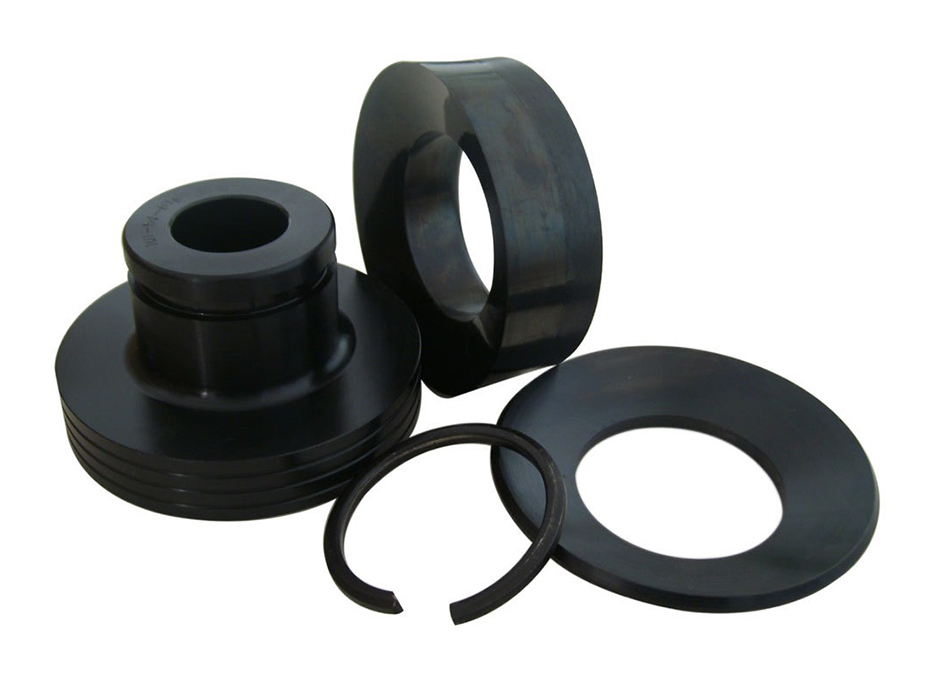

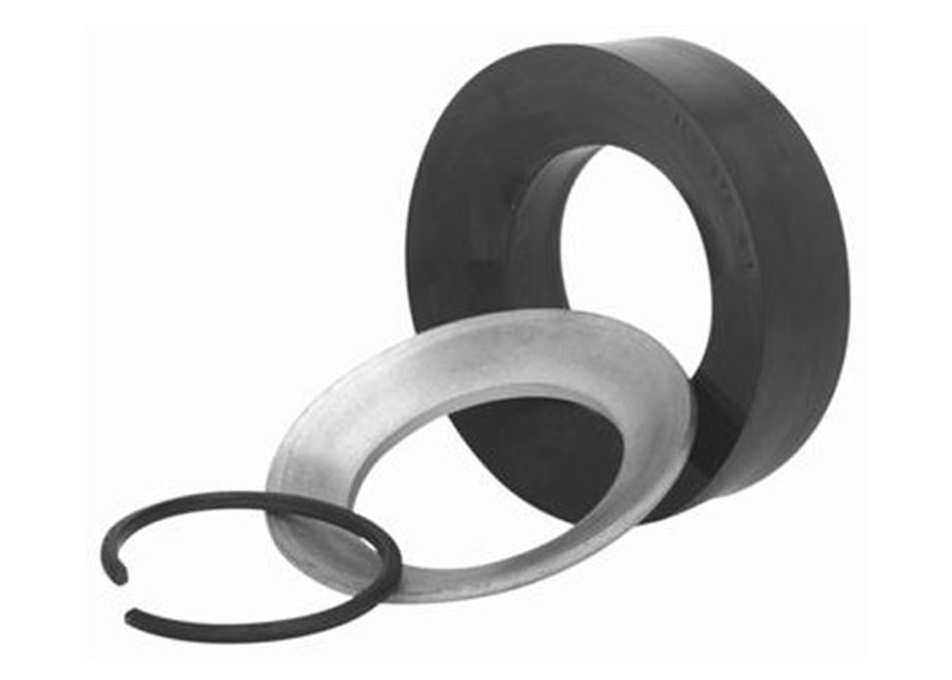

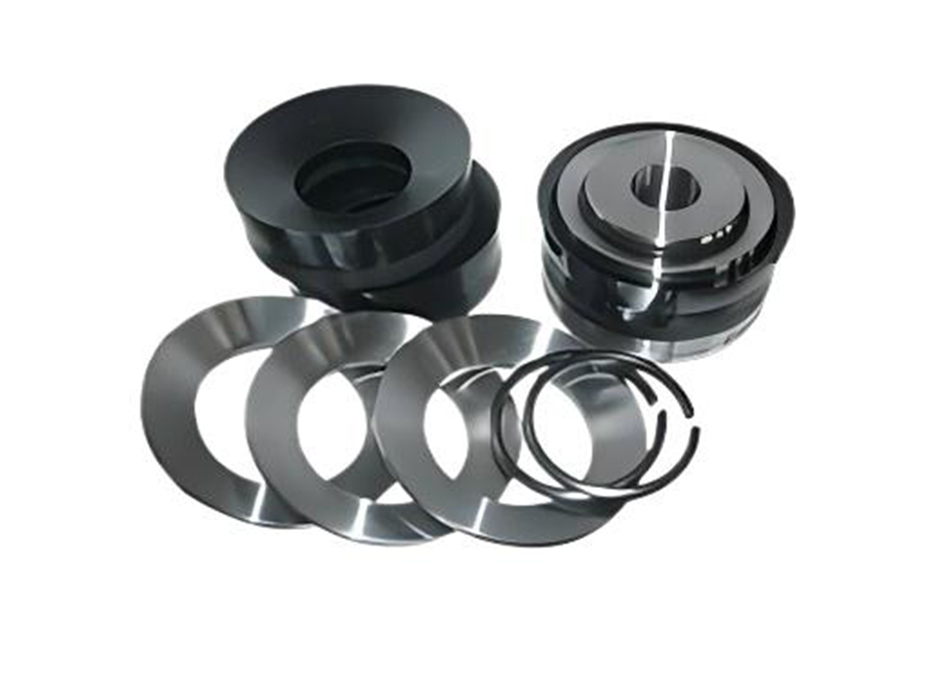

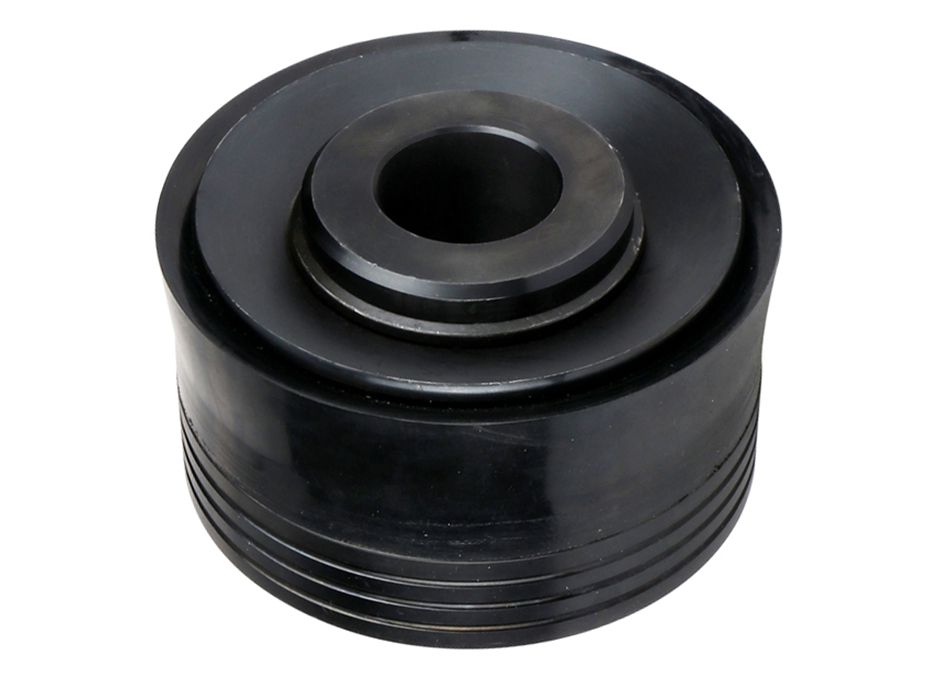

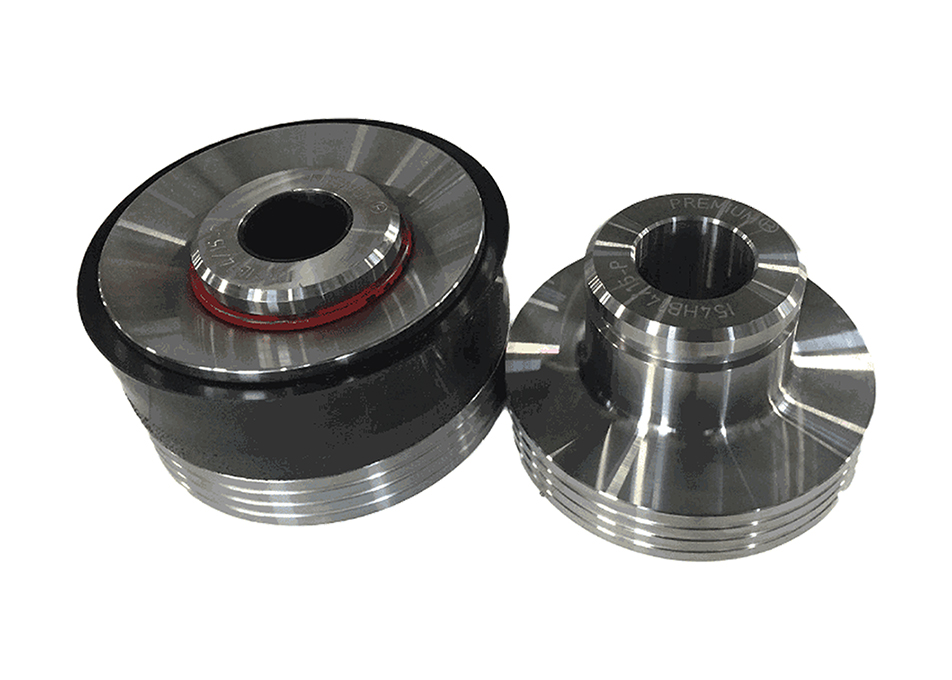

Our replaceable rubber piston is made with nitrile rubber to resist extrusion and abrasion. The two piece design allows for rubber replacement at lower operating pressures, while the robust construction makes it suitable for running at pressures up to 7500 PSI. In a very wide range of drilling conditions, the replaceable rubber piston can run in fluids from clear water up to heavy weight drilling mud. These pistons are fully interchangeable with most other manufactures products.
● 100% interchangeable with the most common brands of mud pumps.
● Available Piston Size: 3 ~ 7-1/2 in
● Pressure Rate: Up to 5,000 psi
● Temperature Rate: 200℉
● Suitable muds: Water / Synthetic based mud
● High tensile strength.
● Designed for high temperature and pressure service.
● Suitable for water and synthetic based muds.
● Reduced operating costs in challenging operating environments.
We provide Replaceable Rubber Pistons for the following brands:
Mud Pump Brand | Mud Pump Model |
Bentec | T-1600-AC |
Drillmec | 9T800, 9T1000, 12T1600 |
EMSCO | F-500, F-800,F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-1600, FC-2200 |
Gardner Denver | TEE, PAH, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11, PXL-2000 |
IDECO | T-500, T-800, T-1000, T-1300, T-1600 |
LEWCO | W-446, WH-1612, W-2200, W-2214, W-2215 |
Oilwell | A-560-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT |
MH Wirth | TPK-800, TPK-1000, TPK-1300, TPK-1600, TPK-2000, TPK-2200 |
National | JW165, JW-340, JW-400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220 |
TSC | WF-700, WF-1000, WF-1300, WF-1600, WF-2000, WF-2200 |
HONGHUA | HHF-500, HHF-800, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL |
Bomco | F-500, F-800, F-1000, F-1300, F-1600, F-1600HL |
Lanshi | 3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800 |
Weatherford | MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-800, E-1100, E-1600, E-2200, EQ-2200 |
Russian pumps | 8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310, 8T-650 |
Please feel free to contact us. We will get back to you ASAP.
