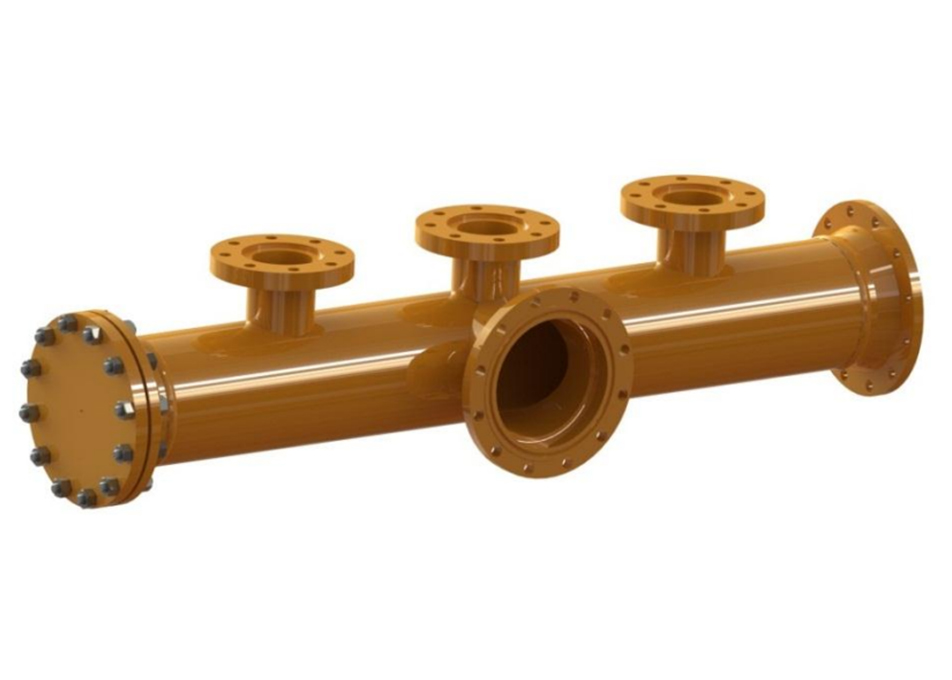

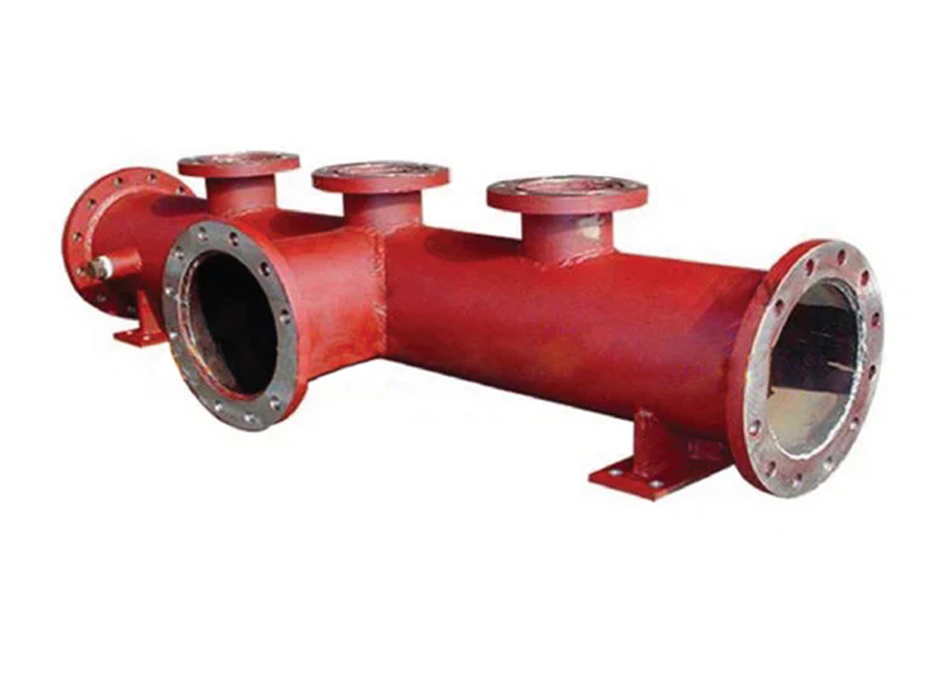

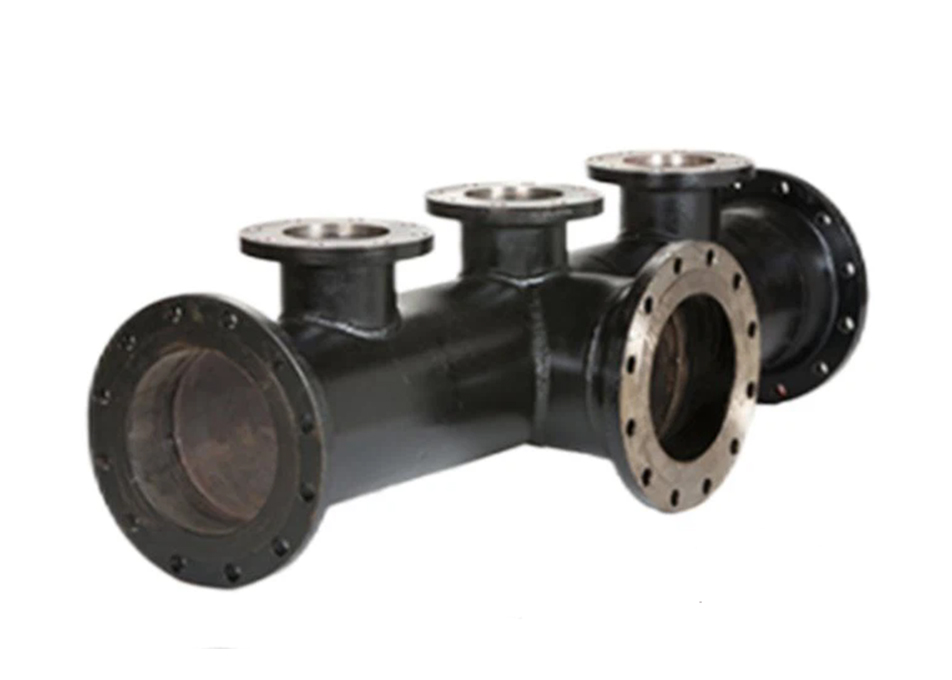

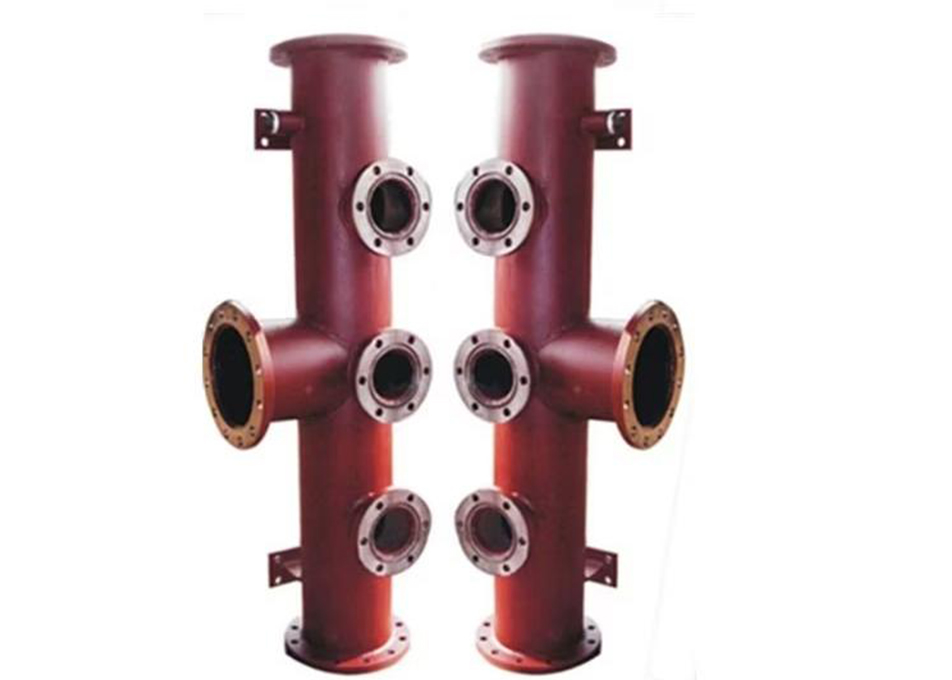

Suction Manifold for Mud Pump

The suction manifold utilised in a triplex mud pump facilitates the efficient transfer of drilling fluid into the pump's chamber. Engineered for durability and reliability, our suction manifolds are designed to withstand high-pressure environments and harsh drilling conditions. With precision machining and robust construction, our suction manifolds ensure optimal fluid flow, contributing to enhanced pump performance and minimised downtime, ultimately improving overall drilling efficiency.

Design Features

● 100% compatible with the most common brands of mud pumps

● Three-Dimensional Structure: Optimized for limited space on ship decks or tight drilling sites.

● Rational Matching: Combines choke manifolds with double-sleeve wellhead manifolds, providing dual-level operation platforms for ease of use.

● Comprehensive Functionality: Includes all functions of horizontal manifolds, with fully enclosed supports to prevent seawater corrosion and ensure high structural strength.

● Easy Assembly: Designed as a modular system for convenient transportation and installation, consisting of four main sections.

● Increased resistance to breakage and longer life.

● Heat treatments, Hydrostatic tests and checks for integrity of the material.

● We also offer full-custom builds tailored to your application with competitive prices.

Parameter

We provide Mud Pump Suction Manifold for the following brands:

Mud Pump Brand Mud Pump Model
Bentec T-1600-AC
Drillmec 9T800, 9T1000, 12T1600
EMSCO F-500, F-800,F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-1600, FC-2200
Gardner Denver TEE, PAH, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11, PXL-2000
IDECO T-500, T-800, T-1000, T-1300, T-1600
LEWCO W-446, WH-1612, W-2200, W-2214, W-2215
Oilwell A-560-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
MH Wirth TPK-800, TPK-1000, TPK-1300, TPK-1600, TPK-2000, TPK-2200
National JW165, JW-340, JW-400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220
TSC WF-700, WF-1000, WF-1300, WF-1600, WF-2000, WF-2200
HONGHUA HHF-500, HHF-800, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL
Bomco F-500, F-800, F-1000, F-1300, F-1600, F-1600HL
Lanshi  3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800
Weatherford MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-800, E-1100, E-1600, E-2200, EQ-2200
Russian pumps 8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310, 8T-650
