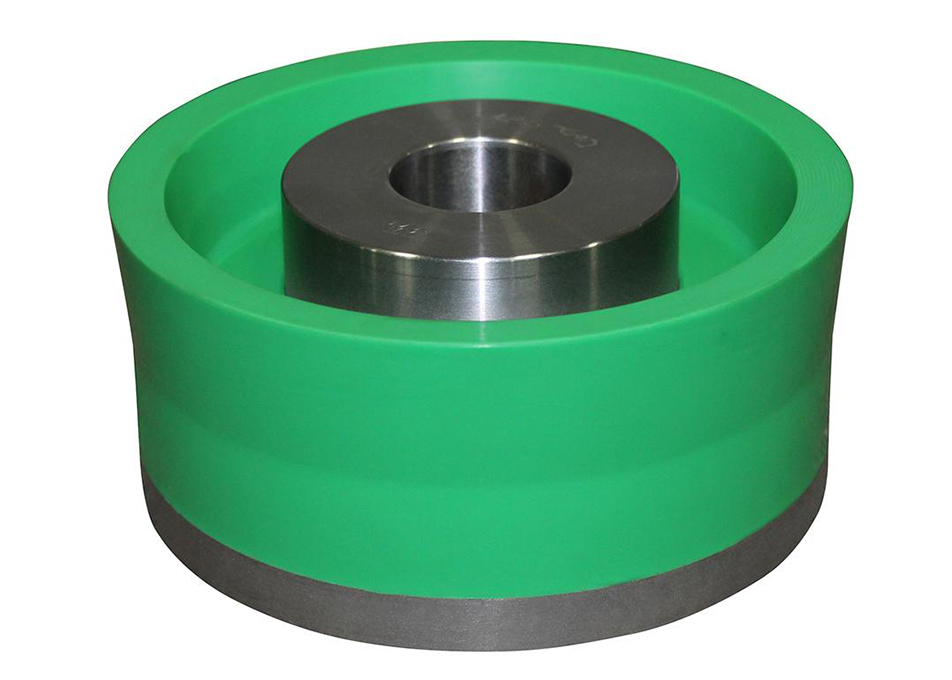

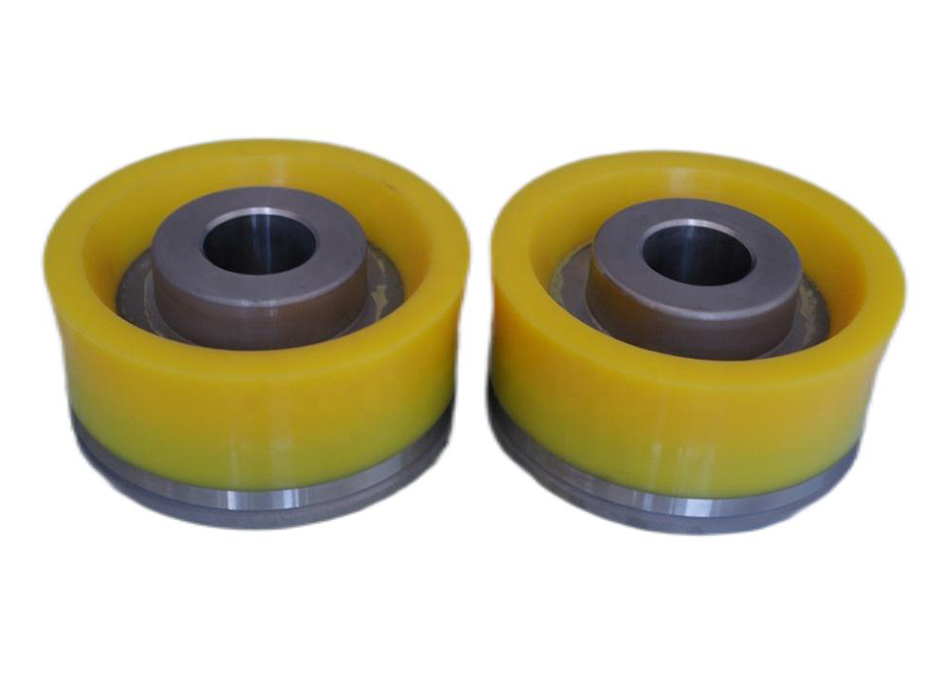

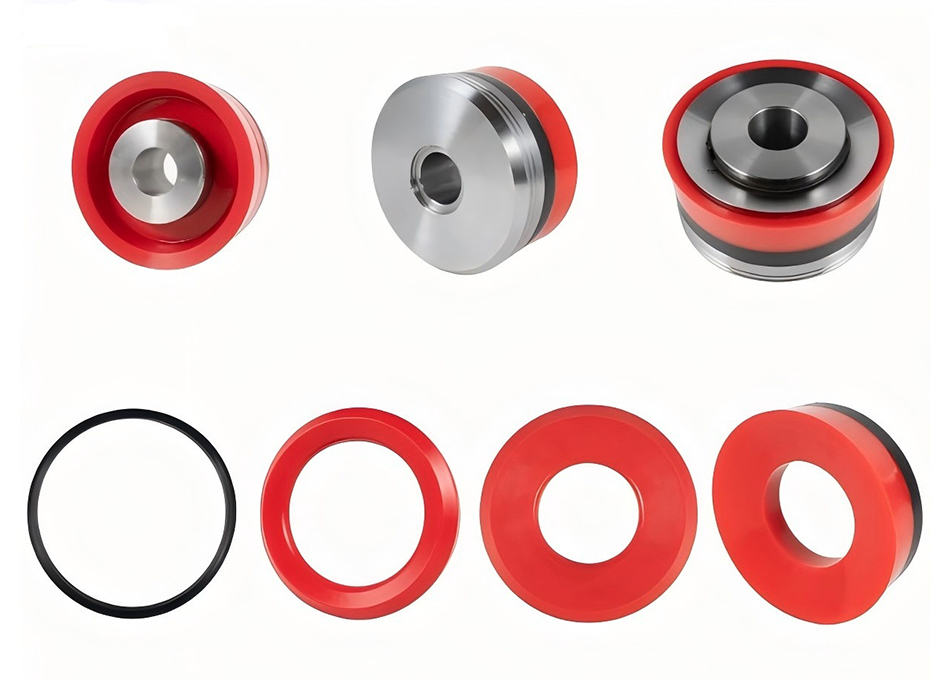

Urethane Bonded Piston for Mud Pump

Our urethane bonded pistons are manufactured from a proven urethane compound that delivers excellent resistance to tear, abrasion and extrusion while maintaining high mechanical properties. The bonded design provides this piston with the strength to handle drilling pressures to 7,500 psi (51.7 MPa) and resists damage and fatigue during thousands of operating cycles. The core of our piston is the proprietary polyurethane compound, which is stronger and more chemically resistant that others in this field. Our standard bonded- polyurethane piston is suitable for operation up to Maximum operating temperature is 180 °F. These standard pistons can be operated at pressures up to 7,500 psi (51.7 MPa).

Design Features

● 100% interchangeable with the most common brands of mud pumps.

● Available Piston Size: 4 ~ 7 in

● Pressure Rate:up to 7,500 psi

● Temperature Rate: 180℉

● Suitable muds: Oil / water based mud

● Excellent chemical and abrasion resistance.

● Optimum performance in oil or synthetic base mud .

● Flex Lip design for decreased liner wear.

Parameter

We provide Urethane Bonded Pistons for the following brands:

Mud Pump Brand Mud Pump Model
Bentec T-1600-AC
Drillmec 9T800, 9T1000, 12T1600
EMSCO F-500, F-800,F-1000, F-1300, F-1600, FB-1300, FB-1600, FC-1600, FC-2200
Gardner Denver TEE, PAH, PZ-7, PZ-8, PZ-9, PZ-10, PZ-11, PXL-2000
IDECO T-500, T-800, T-1000, T-1300, T-1600
LEWCO W-446, WH-1612, W-2200, W-2214, W-2215
Oilwell A-560-PT, A-850-PT, A-1100-PT, A-1400-PT, A-1700-PT
MH Wirth TPK-800, TPK-1000, TPK-1300, TPK-1600, TPK-2000, TPK-2200
National JW165, JW-340, JW-400, 7-P-50, 8-P-80, 9-P-100, 10-P-130, 12-P-160, 14-P-220
TSC WF-700, WF-1000, WF-1300, WF-1600, WF-2000, WF-2200
HONGHUA HHF-500, HHF-800, HHF-1000, HHF-1300, HHF-1600, HHF-1600HL, HHF-2200HL
Bomco F-500, F-800, F-1000, F-1300, F-1600, F-1600HL
Lanshi  3NB-1300C, 3NB-1000, 3NB-1000C, 3NB-800
Weatherford MP-5, MP-8, MP-10, MP-13, MP-16, E-447, E-800, E-1100, E-1600, E-2200, EQ-2200
Russian pumps 8T-650, UNBT-600, UNBT-950, UNBT-1180L, UNBT-950A, UBT-400, BT-600, UB-590, UNB-600, 8T-310, 8T-650
