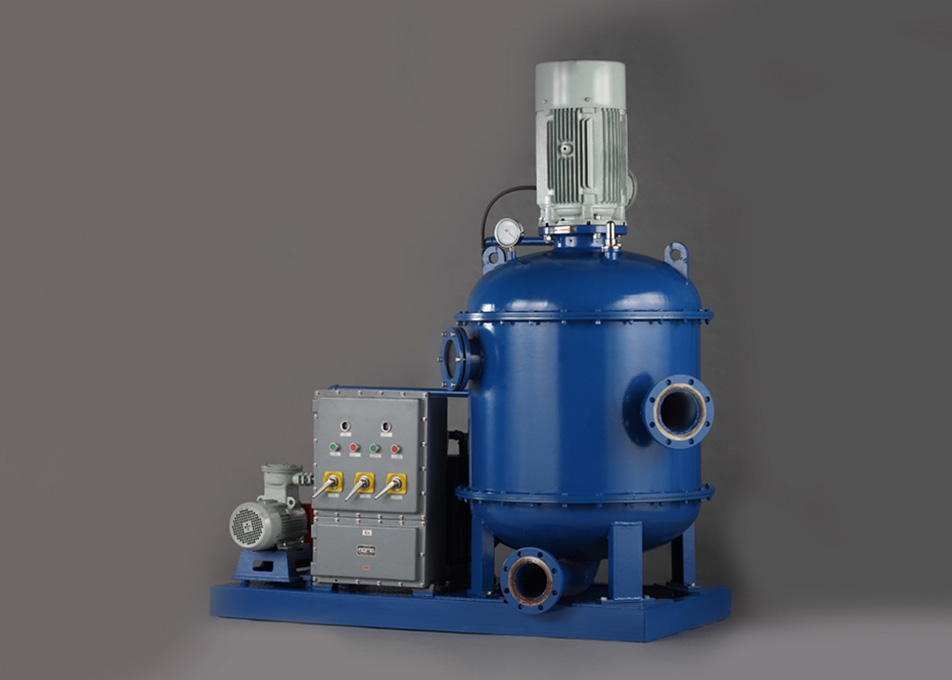

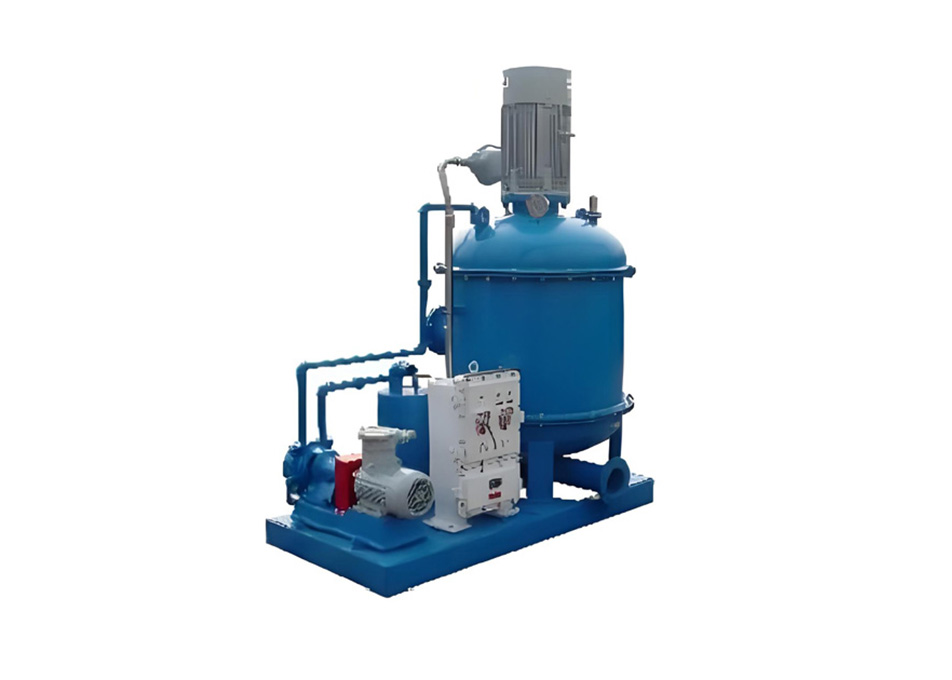

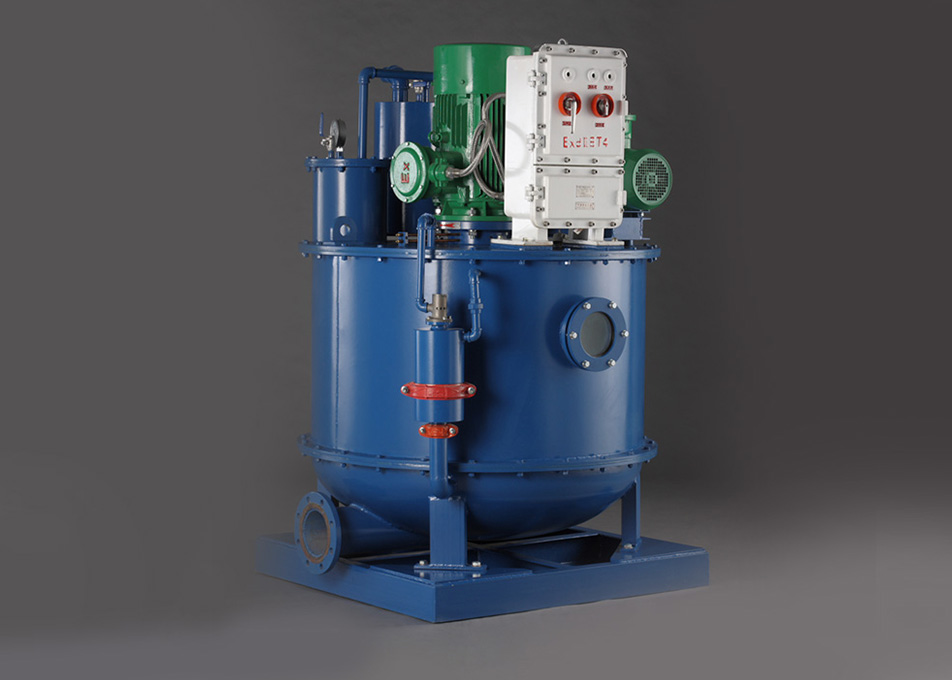

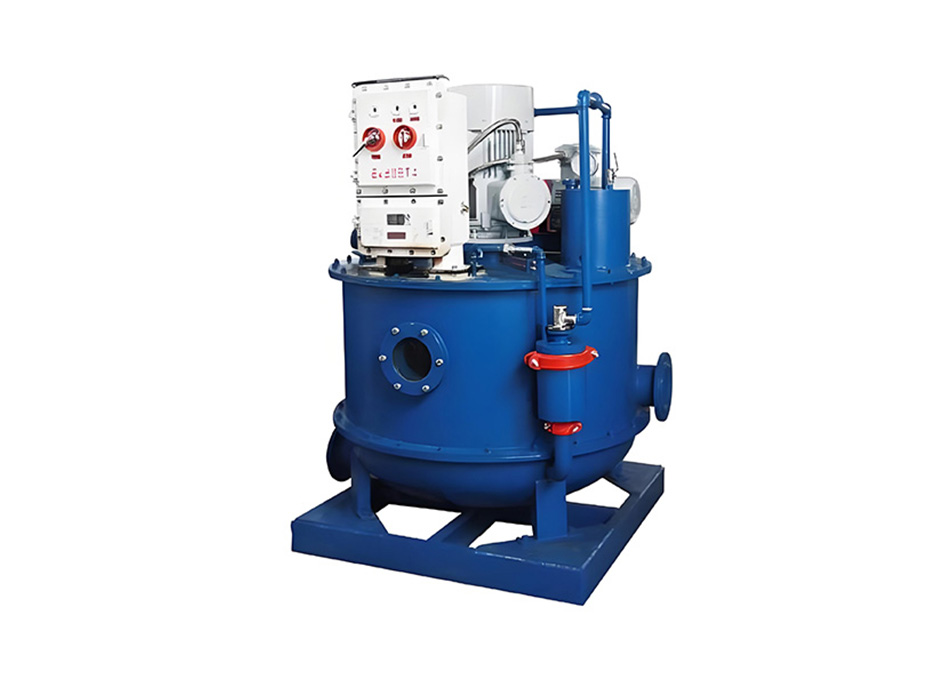

HV series vacuum degasser efficiently removes the ingressed gas in the drilling fluid. The drilling fluid is sucked into the vaccum chamber and rushed to the umbrella shape separating layers through the opening of the central pipe. Because of impact and the vaccum condition, the gas escapes from the fluid and the bubbles flash off. The water ring vaccum pump works to vent the gas to a safe place, and the degassed fluid flows to the next stage for further treatment. Our compact design is realiable with easy installation and simple maintenance.
HV series vacuum degasser efficiently removes the ingressed gas in the drilling fluid. The drilling fluid is sucked into the vaccum chamber and rushed to the umbrella shape separating layers through the opening of the central pipe. Because of impact and the vaccum condition, the gas escapes from the fluid and the bubbles flash off. The water ring vaccum pump works to vent the gas to a safe place, and the degassed fluid flows to the next stage for further treatment. Our compact design is realiable with easy installation and simple maintenance.
| Model | HVV-300 | HV-240 | HV-1200 | HVH-300 |
| Capacity(m³/h) | 260-300 | 200-240 | 280-320 | 280-320 |
| Vacuum(mmHg) | ≥228 | ≥228 | 380-500 | 380-450 |
| Efficiency | ≥95% | ≥95% | ≥95% | ≥95% |
| Main motor power | 22kW | 15kW | ||
| Vacuum pump power | 4kW | 3kW | 3kW/4kW(60Hz) | 4kW |
| Inlet | 6" | 5" | 6" | 6" |
| Outlet | 8" | 6" | 8" | 8" |
| Weight(kg) | 1560 | 1340 | 2800 | 1860 |
| Dimensions(mm | 1380×1356×2002 | 1960×1070×2314 | 2200×1200×2000 | 3600×1000×2400 |
